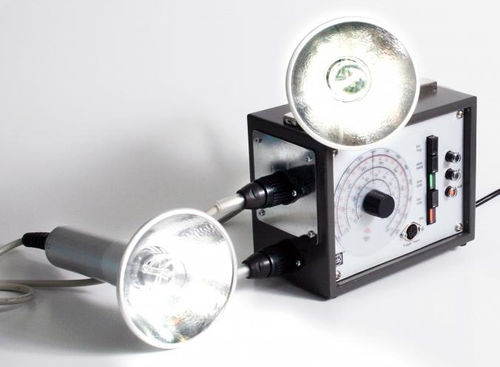

Analog stroboscope MOVISTROB® 420.00-S/2HL

with separate lamp

Used for rotating and vibrating speed measurement as well as for the observation of fast moving periodic or non-periodic mechanisms at two from each other separately located fields of events at the same time; for instance in printing, paper, labelling and packaging industries etc. IC/CMOS-technology, longtime stability, transparent dial with 3 linear scales for precise frequency adjustment, signal control buttons for easy operation. Hand lamps can be controlled by additional signal pushbutton switches operated either individually or both at the same time without power drop. General Data: Light Source: 2 pcs. external hand lamp model 900.00 with flash bulb (control unit without built-in flash bulb) Flash bulb: 4pin socket-mounted Xenon-longlife, glass tube protected, model MS 300, Art.No.: 10058 Light intensity: approx. 700 Lux in 50cm distance from reflector (beam axis) Flash duration: approx. 2-7µs Frequency range: 2,5 - 300 Hz = 150 - 18.000 RPM (min-1) subdivided into 3 overlapping ranges 1.) 2,5 - 20 Hz = 150 - 1200 RPM (min-1) 2.) 16,6 - 83,3 Hz = 1000 - 5000 RPM (min-1) 3.) 80 - 300 Hz = 4800 - 18000 RPM (min-1) Trigger action: internal oscillator or external triggering selected by signal control push button - Internal control: by dial potentiometer - External control: by contact or pulse signals
