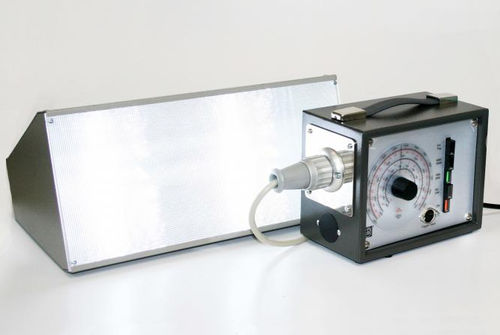

Analog stroboscope MOVISTROB® 400.00-S/LW2

with separate lamp

Large-area stroboscopic illumination for special applications in printing and metal strip industries for observation of printing images, control of colour quality monitoring and early detection of faulty impressions on rolled strip material, a special grid screen cover ensures uniform light distrubution and maximum homogeneous illumination of the observation sector. General Data: Light Source: external trough fitting with 2 flash bulbs (control unit without built-in flash bulb) Flash bulb: 4pin socket-mounted Xenon-longlife, glass tube protected, model MS 300, Art.No.: 10058 Light intensity: approx. 700 Lux in 50cm distance from reflector (beam axis) Flash duration: approx. 2-7µs Frequency range: 2,5 - 300 Hz = 150 - 18.000 RPM (min-1) subdivided into 3 overlapping ranges 1.) 2,5 - 20 Hz = 150 - 1200 RPM (min-1) 2.) 16,6 - 83,3 Hz = 1000 - 5000 RPM (min-1) 3.) 80 - 300 Hz = 4800 - 18000 RPM (min-1) Trigger action: internal oscillator or external triggering selected by signal control push button - Internal control: by dial potentiometer - External control: by contact or pulse signals
