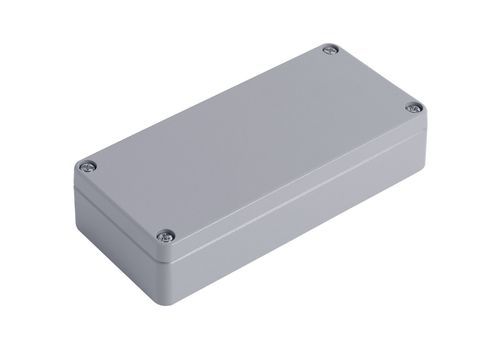

Control electrical enclosure BB024

modularaluminumwaterproof

Product overview
BB024 is a heavy-duty aluminium electrical enclosure sized 64 × 150 × 34 mm. Manufactured from GdAlSi12(Fe) aluminium alloy (DIN 1706 / ENAC44300), it delivers dust- and water-tight protection with IP66, IP67 and IP68 ratings. Available in natural or powder-coated finishes (RAL 7001, RAL 9005 or uncoated). Maximum fitting height: 28.5 mm. Uses M4 × 20/7 cylinder screws (similar to DIN 84). Salt spray resistance exceeds 1,000 hours.

Features

• Compact 64 × 150 × 34 mm enclosure
• Die-cast GdAlSi12(Fe) aluminium alloy construction
• Protection ratings: IP66, IP67, IP68
• Natural or powder-coated finish options (RAL 7001 / RAL 9005 / natural)
• Maximum fitting height 28.5 mm
• Fixing with M4 × 20/7 cylinder screws (similar to DIN 84)
• Salt spray resistance >1,000 hours
• Suitable for electrical and electronic installations

Technical specifications
Model — BB024
Dimensions — 64 × 150 × 34 mm
Material — GdAlSi12(Fe) aluminium alloy (DIN 1706 / ENAC44300)
Protection — IP66 / IP67 / IP68 (IS/IEC 60529 / EN 60529)
Finish — Natural / Powder coated (RAL 7001 Silver Grey / RAL 9005 Black / Natural uncoated)
Maximum fitting height — 28.5 mm
Screw — M4 × 20/7, similar to DIN 84
Salt mist test — >1,000 hours

Applications
Designed for electrical and electronic applications requiring watertight and dustproof enclosures: terminal connections, instrument housings, junction boxes and industrial control devices in harsh environments.

Characteristics / Technical details

• Model: BB024
• Dimensions: 64 × 150 × 34 mm
• Material: GdAlSi12(Fe) aluminium alloy
• Protection rating: IP66 / IP67 / IP68
• Finish: Natural or Powder Coated (RAL 7001, RAL 9005, Natural)
• Maximum fitting height: 28.5 mm
• Fixing screws: M4 × 20/7 (similar to DIN 84)
• Salt spray resistance: >1,000 hours
