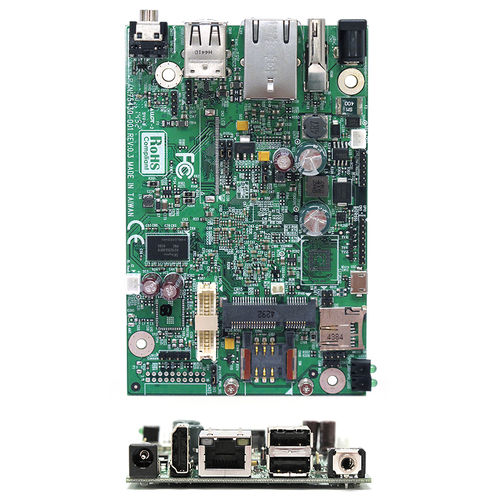

I.MX6 Cortex A9 single-board computer AR6MXCS

Mini PCI Express

AR6MXCS is a low cost SBC targeted to OEMs looking for a long life, cost effective, and off-the-shelf iMX6 Solo solution they can build their products around. The AR6MXCS is small form factor (120x78mm) and includes HDMI/LVDS, G-bit Ethernet, USB/uUSB, Mini PCIe and SIMcard socket. The AR6MXCS competes well against other low cost solutions but also provides the longevity and stability OEMs require to go to take their products to market. NXP i.MX6 ARM Cortex A9 Solo Core 1.0 GHz 512 MB onboard DDR3 Memory Dual Display: 1 x 18/24bits LVDS, 1 x HDMI 3 x USB 2.0 (2 external and 1 internal) and 1 x OTG 1 x COM (RS232) and 1 x COM (TTL) 1 x uSC Card Socket 1 x SIM Card Socket External RTC: Seiko® S-35390 or Equivalent (Optional) 5V DC Input Small Form Factor (Palm Size)
