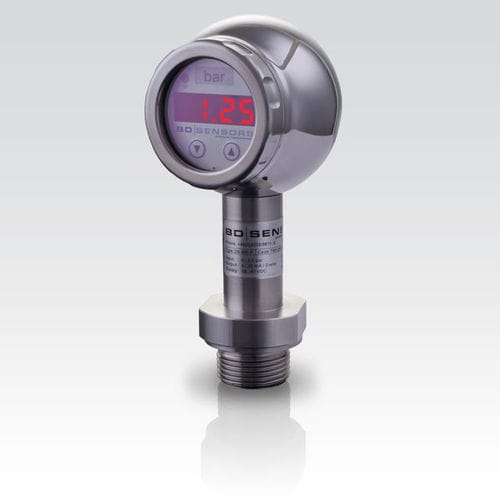

Electronic pressure and vacuum switch DS 400 P
for liquids and gasesindustrialfor pumps

electronic pressure and vacuum switch
electronic pressure and vacuum switch
Add to favorites
Compare this product


Characteristics

Technology
electronic
Fluid
for liquids and gases
Applications
industrial, for pumps
Other characteristics
adjustable, digital, with display
Pressure range

Max.: 40 bar
(580.15 psi)

Min.: 0 bar
(0 psi)

Process temperature

Max.: 125 °C
(257 °F)

Min.: -40 °C
(-40 °F)

Description

The electronic pressure switch DS 400P is the successful combination of - intelligent pressure switch - digital display and has been developed for process industry; especially for food industry and pharmacy. As standard the DS 400P offers a PNP contact and a rotable display module with 4-digit LED display. Optional versions like e.g. an intrinsically safe version, max. 2 contacts and an analogue output complete the profile. Features: - nominal pressure: 0 ... 100 mbar up to 0 ... 40 bar - accuracy: 0.35 % (opt. 0.25 %) FSO - 1 or 2 independent PNP contacts, freely configurable - indication of measured values on a 4-digit LED display - rotatable and configurable display module - hygienic process connections with flush stainless steel diaphragm Optional Features: - IS-version Ex ia = intrinsically safe for gases
