Inductive proximity sensor ACF series
electromagneticslot type240VAC

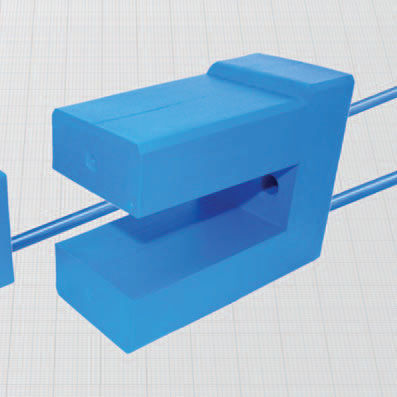

Inductive proximity sensor - ACF series - BDC ELECTRONIC S.r.l. - electromagnetic / slot type / 240VAC
Inductive proximity sensor - ACF series - BDC ELECTRONIC S.r.l. - electromagnetic / slot type / 240VAC
Inductive proximity sensor - ACF series - BDC ELECTRONIC S.r.l. - electromagnetic / slot type / 240VAC - image - 2
Add to favorites
Compare this product
Go to the BDC ELECTRONIC S.r.l. website for more information

Characteristics

Technology
inductive, electromagnetic
Shape
slot type
Supply voltage
240VAC
Material
plastic, PVC
Protection level
IEC, EMC, IP67
Other characteristics
with amplified output
Measuring range

16 mm, 30 mm
(0.63 in, 1.18 in)

Process temperature

Max.: 70 °C
(158 °F)

Min.: -25 °C
(-13 °F)

Description

• Amplified in a.c. 2 wires • Cable output Technical data: • Supply voltage (UB): 20 ÷ 240 Vac • Electrical system frequency: 40 ÷ 60 Hz • Off-state current (Ir ): ≤1,5 mA at 110 Vac • Minimum operational current (Im): 5 mA • Voltage drop (Ud): ≤ 5 V • Max thermal drift of sensing distance Sr : ± 10% • Repeat accuracy (R): 2% • Switching hysteresis (H): 10% • Switch status indicator: yellow LED • Cable conductor cross section: 0,75 mm2 • Suppression of initial false impulse • Class 2 equipment according to IEC 536 • Shock and vibration according to EN60068-2-27 EN60068-2-6 • Electromagnetic compatibility (EMC) according to EN60947-5-2 Materials: • Cable: 2 m PVC CEI 20 - 22 II; 90°C; 300 V; O.R. • Housing: plastic
