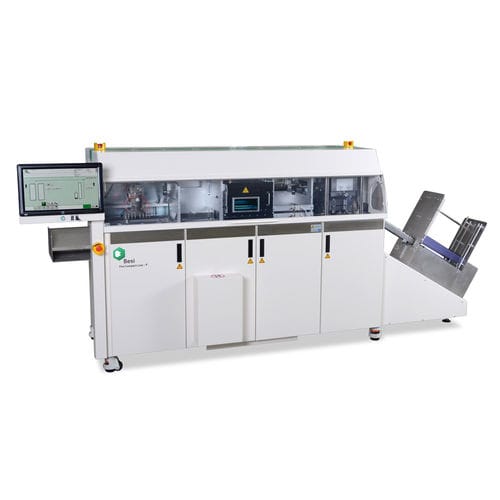

The new Fico Compact Line - P (FCL-P) is the latest development in Trimming & Forming for power products. The FCL-P is the answer to the increasing demands on accuracy, Cpk and product traceability.
Increased press force
The FCL-P press has an advanced pollution control system that allows trouble free processing of preplated and interdigit leadframes. Each press has dedicated aspiration, with controlled high air flow speeds and a unique cyclone dust filter.
Different loaders and offloaders
A range of loader and offloader modules are available, ranging from magazines and cassettes to tray, bulk and tube. Short and controlled transport distances increase the performance of the FCL-P and at the same time prevent damage to your products.
Wide range of available modules
- Dual Stack Magazine Handler
- Control Unit
- Slotted Magazine Loader
- Power Press Module
- Gravity Tube Offloader
- Laser Marker
- Separator to Sorter
- Device Sorter
Dual Stack Magazine Handler
- Loader or offloader use
- Dual stack with automatic magazine rotation
- Auto ejection of rejected leadframes
- Servo motor controlled leadframe pusher
- Strip loading with vacuum pick-up head (ESD safe)
- Very short leadframe travel
- Smooth leadframe accelleration and transport
- Closed magazine bottom handling (option)
Vision Inspection
- Leadframe identification
- Leadframe orientation
- Bottom and/or Top inspection
- Large field of view
- High definition camera
- Stable construction
Power Press
- High press force: 50 kN (58 Joule)
- High airflow (vacuum and/or compressed air) in tool
- Exhaust system per press
- Easy tool exchange
- RFID tool recognition
