Asynchronous motor T1A 561-4
three-phase400 VIE1

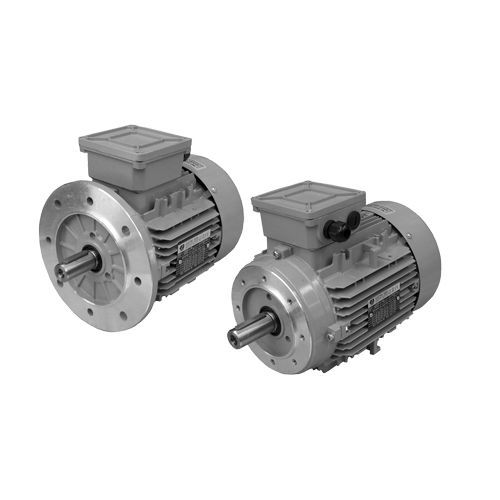

Asynchronous motor - T1A 561-4 - BEA Ingranaggi - three-phase / 400 V / IE1
Asynchronous motor - T1A 561-4 - BEA Ingranaggi - three-phase / 400 V / IE1
Asynchronous motor - T1A 561-4 - BEA Ingranaggi - three-phase / 400 V / IE1 - image - 2
Asynchronous motor - T1A 561-4 - BEA Ingranaggi - three-phase / 400 V / IE1 - image - 3
Add to favorites
Compare this product

Characteristics

Type
asynchronous, three-phase
Voltage
400 V
Efficiency classes
IE1
Cooling mechanism
self-ventilated
Power

Max.: 315 kW
(428.28 hp)

Min.: 0.06 kW
(0.08 hp)

Intensity

Max.: 526 A

Min.: 0.35 A

Torque

Max.: 2,032 Nm
(1,498.726287 ft.lb)

Min.: 0.42 Nm
(0.309776 ft.lb)

Rotational speed

Max.: 1,500 rpm
(9,424.778 rad.min-1)

Min.: 1,360 rpm
(8,545.132 rad.min-1)

Description

THREE-PHASE ASYNCHRONOUS MOTORS "TA" series 4-Poles Overall dimensions TA Series Mounting B5 - Frame size 56÷132 Self-ventilated motors (IC 411) Overall dimensions TA Series Mounting B14 - Frame size 56÷132 Self-ventilated motors (IC 411) Overall dimensions TA Series Mounting B3/B5 - Frame size 56÷132 Self-ventilated motors Technical data IE1 Effi ciency class (IEC 60034-30; 2008) Insulation class F - S1 Duty - 400 V - 50 Hz 4 poles - 1.500 rpm
