Antenna electrical cable CBL-ANT-10M-NTRAM-NTSFRFcoaxialstraight
Add to favorites
Compare this product
Characteristics
- Type
- RF
- Format
- coaxial
- Configuration
- straight, right-angle
- Applications
- antenna
- Temperature
Max.: 70 °C
(158 °F)Min.: -30 °C
(-22 °F)
Description

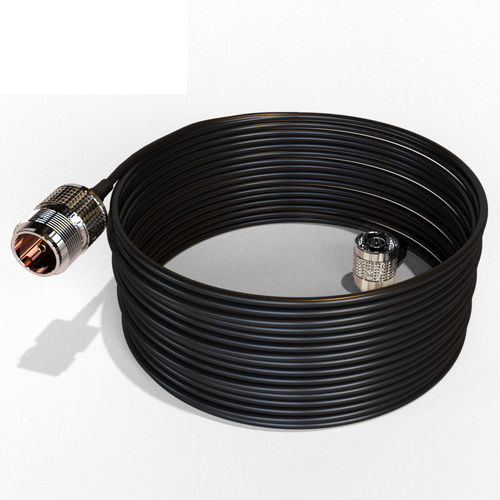

N-Type Right Angle male to N-Type straight female cable antenna, Cable length 10 meters H155 Cable
Cable Type:
- H-155 with 6.1 mm diameter
H 155 is a modern low loss coax cable within the 5 mm range, compared to RG58 it has less losses thanks to its double shielding with braid and foil.
Attenuation per 100m:
- 9.4 dB @ 100 MHz
- 19 dB @ 400 MHz
- 35 dB @ 1000 MHz
- 55 dB @ 2400 MHz
Capacitance: 100 pF/m
Velocity Ratio: 0.79
Impedance: 50 Ohm
Operating Temperature: -30°C bis +70°C
Environmental: RoHS konform / RoHS compliant / 2002 / 95 / EC
