AC servomotor AM8531 series
480 V100 Valuminium

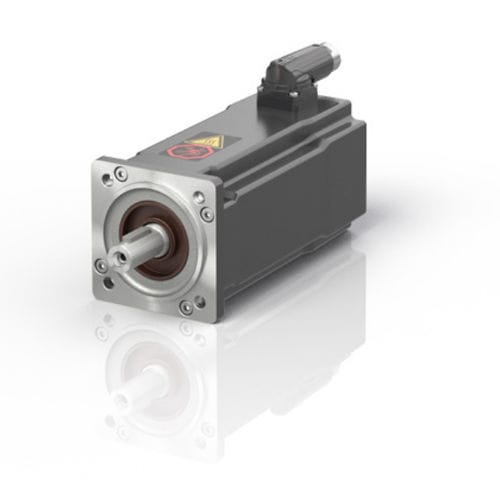

AC servomotor - AM8531 series - Beckhoff Automation - 480 V / 100 V / aluminium
AC servomotor - AM8531 series - Beckhoff Automation - 480 V / 100 V / aluminium
Add to favorites
Compare this product

Characteristics

Type
AC
Voltage
480 V, 100 V
Configuration
aluminium
Protection class
IP65, IP54
Other characteristics
high-inertia
Power

0.42 kW, 0.84 kW, 1.23 kW
(0.57 hp, 1.14 hp, 1.67 hp)

Intensity

1 A, 1.95 A, 3.2 A

Torque

1.37 Nm, 1.38 Nm, 1.4 Nm
(1.01046 ft.lb, 1.017836 ft.lb, 1.032587 ft.lb)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: 5 °C
(41 °F)

Description

The AM8531 high-inertia servomotor is suitable for drive solutions with increased moment of inertia to ensure synchronism and optimal ratio of load/motor inertia in the 100…480 V AC voltage range. The standstill torque of the motor depends on the winding and is in the range of 1.37…1.40 Nm. It is available with the OCT feedback system (absolute encoder). The high-inertia servomotor with flange code F3 (72 mm) and motor length 1 has a shaft diameter b = 14 k6 and a free shaft end of d = 30 mm.
