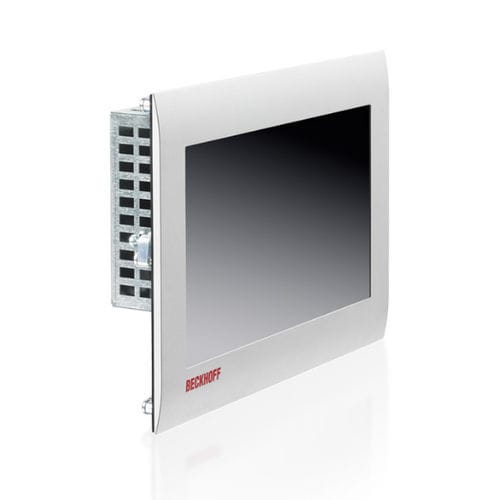

LCD panel PC CP660 series

touch screen7"10.1"

The CP6600 and CP6606 built-in Panel PCs are designed for installation in the front of a control cabinet or control housing and can be used for a variety of applications in machine construction and plant engineering – for example, as a stand-alone controller with the TwinCAT automation software running on Windows Embedded Compact 7 or as a remote desktop display. They are available with two different touch screen displays with a 7 or 10.1-inch screen size. Scalable performance Both sizes are available with an ARM Cortex™-A8 processor. Highest data availability and data security The CP6600 and CP6606 Panel PCs are equipped with a microSD card and therefore contain no rotating components. A 24 V power supply unit is included with both variants, optionally also with a capacitive uninterruptible power supply (1-second UPS) and NOVRAM for fail-safe data storage. Flexible expansion options The optional C9900-G07x push-button extensions supplement the built-in Panel PCs by an emergency stop button and three push-button keys with signal lamps. Accessibility of the components Both the microSD card and the lithium battery for the system clock are accessible from the rear side in the connector bracket. Central EtherCAT control In conjunction with the TwinCAT automation software running on Windows Embedded Compact 7, these devices are ideal for use as small controllers in machine construction and plant engineering. Due to the independent Ethernet and EtherCAT interfaces, the CP6600 and CP6606 Panel PCs are ideal for use as the compact central unit of an EtherCAT controller. Advantage at the very core: the Beckhoff Industrial PCs Beckhoff is a pioneer in PC-based automation
