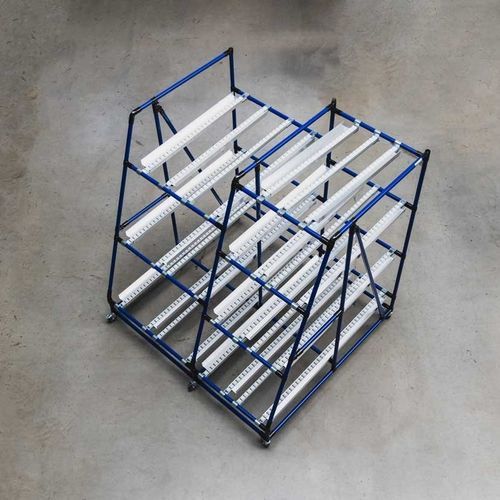

Steel profile system

modularrapid installationelectrically-conductive

Overview
The modular steel pipe racking system is a versatile construction kit based on 28 mm round steel pipes and metal connectors. It enables fast assembly of workstations, racks, material trolleys and other lean-production equipment across industrial and logistic environments.

Applications

• Workstations and assembly benches
• Racks and flow racks (FIFO)
• Transport carts and material trolleys
• Conveyor/roller solutions and customised lean layouts

Pipes (Ø28 mm)
The system is built around 28 mm outer-diameter round steel pipes available in several variants and surface/coating options. Variants include DP, D-COAT, ECCO and SUS. Multiple colours and different inner-diameter options are offered. Certain pipe variants are available in electrically conductive versions for ESD applications.

D-COAT pipes
D-COAT steel pipes feature a plastic coating that provides enhanced corrosion protection and colour-coding possibilities for equipment identification.

ECCO pipes
ECCO steel pipes have a highly scratch-resistant powder coating, are UV-resistant, reusable and recyclable for sustainable applications.

SUS pipes
SUS pipes offer a smooth, stainless-steel-like surface with good corrosion resistance, high reusability and resistance to marking from clamping or contact.

Pipe joints (connectors)
Metal pipe joints assemble the system into stable structures. Connectors include a special grip profile delivering very high pull-out and holding forces (> 80 kg). A single connector can accommodate up to five pipes. Available connector finishes: black powder-coated, white galvanised (electrically conductive, suitable for ESD) and nickel-plated.

Add-on parts and accessories
The system supports numerous accessories to adapt to specific requirements:

• Roller tracks and roller conveyors
• Deflection joints and C-rails
• Cord rollers, stoppers and guides
• Installation supports and castors (mobile/locking)
• Panels (table tops, shelves, partitions) and perforated plates
• Workplace LED lighting
• Lifting systems for height adjustment
• Floor markings, workstation mats, open-front storage boxes, labelling

Key features

• Modular: easy assembly and adaptation to specific workflows
• Simple & stable: proven connector system with robust steel pipes
• Compatible: combinable with other BeeWaTec pipe systems (round aluminium, square steel/aluminium)
• Sustainable: reusable and recyclable components where applicable
• Colour and coating options for identification and corporate identity

Technical specifications

• Pipe outer diameter: Ø28 mm
• Pipe variants: DP, D-COAT, ECCO, SUS (various inner diameters available)
• Surface/coating options: plastic-coated (D-COAT), powder-coated (ECCO), smooth stainless-like (SUS), others
• Electrical conductivity: selected pipe variants and white galvanised connectors available in conductive versions (for ESD)
• Connector performance: grip profile achieving pull-out/holding forces > 80 kg
• Connector capacity: up to 5 pipes per connector (depending on type)
• Connector finishes: black powder-coated, white galvanised (conductive), nickel-plated
• Available accessories: roller tracks, deflection joints, C-rails, cord rollers, stoppers, panels, lighting, lifting systems, supports, castors, labelling, floor markings, mats, storage boxes
• Typical applications: workstations, racks, material trolleys, flow racks and lean production solutions
