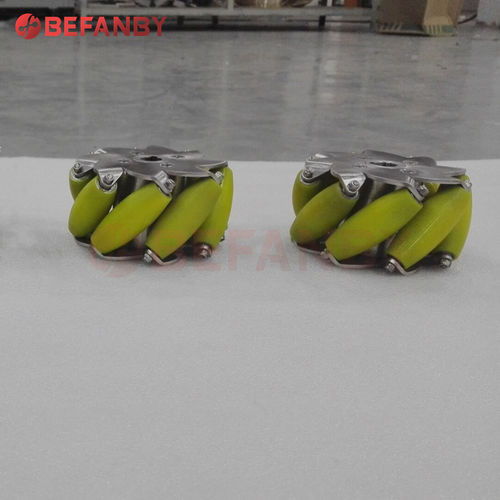

Mecanum wheel
rubbersmoothrubber

mecanum wheel
mecanum wheel
mecanum wheel
mecanum wheel
mecanum wheel
mecanum wheel
Add to favorites
Compare this product


Characteristics

Type
mecanum
Hub material
rubber
Hub type
smooth
Tread material
rubber, polyurethane
Applications
for heavy loads, for materials handling
Other characteristics
low-noise, high-performance, high-efficiency
Load capacity

Min.: 1 t
(1 us ton)

10 t
(11 us ton)

Max.: 30 t
(33 us ton)

Diameter

Min.: 150 mm
(5.91 in)

250 mm
(9.84 in)

Max.: 500 mm
(19.69 in)

Description

Mecanum wheels can provide a maximum payload of 4500KG while maintaining high precision. The grinding wheel adopts an integrated molding process to maximize the mechanical properties of the material. All mecanum wheels use rolling bearings and polyurethane materials on the surface of the driven wheel, which have good performance in terms of stability, quietness, durability and all-round. They can adapt to various indoor and outdoor occasions. Service and support: 1.The company promises that the Impact load resistance of the transfer cart is not less than 150%; 2.According to specific demands, we will design auxiliary devices and basic drawings for users free of charge, and provide technical services and drawing materials.; 3.Provide users with free technical consultation, technical training, and answer product-related questions; 4.During the warranty period, when the product is damaged or does not work properly due to quality problems, the user will be repaired or replaced with accessories free of charge. 5.Deal with quality issues efficiently and conscientiously, and start and end well. Product Feature: Name:Payload Large And Heavy Duty Vehicle Omnidirectuonal Mecanum Wheels Car Make:mecanum wheel Wheel material:steel/PU Certification:SGS/CE/SASO/SGS Surface:Stainless Steel Natural Color Brand Name:BEFANBY Warranty:2 Year Machinery Test Report:Provided Place of Origin:CN;HEN Weight (KG):6
