Digital multimeter AM-520-EUR
portablecat IIIcat IV

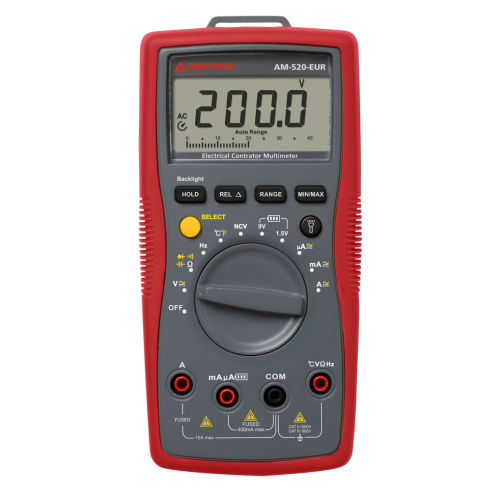

Digital multimeter - AM-520-EUR - BEHA AMPROBE - portable / cat III / cat IV
Digital multimeter - AM-520-EUR - BEHA AMPROBE - portable / cat III / cat IV
Digital multimeter - AM-520-EUR - BEHA AMPROBE - portable / cat III / cat IV - image - 2
Add to favorites
Compare this product

Characteristics

Display
digital
Form
portable
Safety rating
cat III, cat IV
Additional features
frequency
Protection level
rugged
Applications
industrial
Max DC voltage

600 V

Max AC voltage

600 V

Max DC current

10 A

Max AC current

10 A

Max resistance measure

Max.: 40 mOhm

Min.: 1 mOhm

Max capacity measure

Max.: 4,000 µF

Min.: 10 µF

Max frequency measure

10 MHz

Max.: 0 MHz

Min.: 0 MHz

Process temperature

Max.: 1,000 °C
(1,832 °F)

Min.: 40 °C
(104 °F)

Length

182 mm
(7.17 in)

Width

90 mm
(3.54 in)

Height

45 mm
(1.77 in)

Weight

354 g
(12.49 oz)

Description

Digital Multimeter The Beha-Amprobe AM-500-EUR Digital Multimeter Series, a full line of digital multimeters that offer functions for every application. These tough meters are designed to be a reliable, feature-rich, and rugged solution for taking critical measurements in residential, HVAC, electrical and industrial settings at breakthrough affordability. Functions • Voltage, current and resistance measurement • Capacitance and frequency measurement • Diode and acoustic continuity test Product information • Automatic and manual range selection • Integrated measurement memory (data hold) • Illuminated display • Relative measurement • Auto Power Off • Temperature measurement • Additional bar graph display (61segments) • MIN/MAX hold • Carry case included Product highlights • Non-contact voltage detection • Built-in LED flashlight
