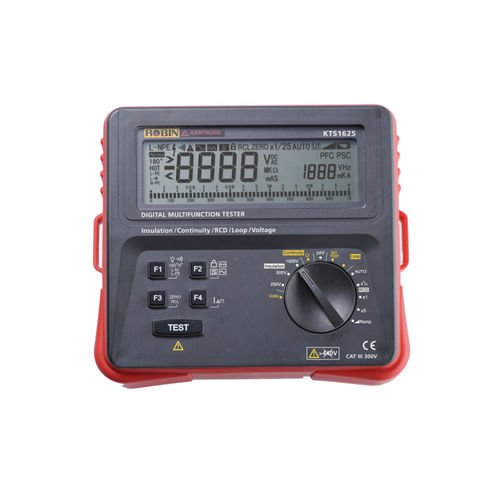

Voltage tester KTS1625

insulationcontinuityperformance

Digital Multifunction Tester (Insulation / Continuity / Loop / RCD / Voltage) Safety and performance are two most critical requirements for every electrical system. The quality of insulation, properly working grounding system and active protection are to assure safety of people, electrical systems and buildings against electrocution, fire, and other equipment damage. Robin-Amprobe KTS1625 tester verifies the safety of electrical installations in domestic, commercial and industrial applications. It can ensure that fixed wiring is safe and correctly installed to meet the requirements of BS7671 IEE 17th edition wiring regulations. Continuity Functions Continuity resistance @ 200mA Insulation Function Selectable test voltages 250V, 500V & 1000V Line / Loop Impedance Functions Prospective earth fault current Prospective short-circuit current Non Trip Loop test Fast testing RCD Functions Three levels of trip currents (X½, X1, X5) for complete range of testing applications Phase switch selection 0° and 180° for positive and negative semi-cycle testing RCD ramp test Tests time delayed RCDs (S-type) Test pulse sensitive (DC) RCDs Auto RCD test Designed to allow testing to BS7671 IEE 17th Edition regulations Voltage and frequency measurements Instant correct wiring status check Dual measurement result display Large, backlit display Low battery indication Safety CAT III 300
