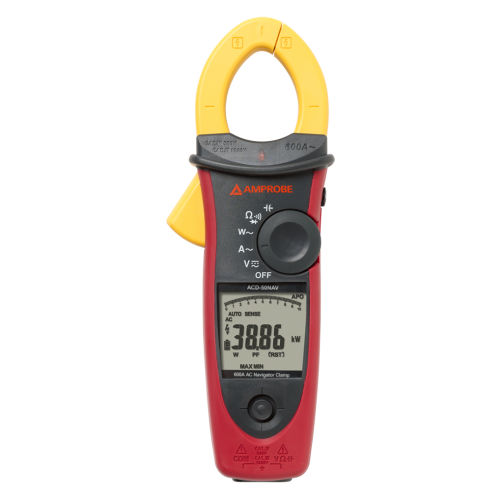

Digital clamp multimeter ACD-50NAV
portable1000 V600 A

digital clamp multimeter
digital clamp multimeter
digital clamp multimeter
Add to favorites
Compare this product


Characteristics

Display
digital
Form
portable
Max voltage
1000 V
Max current
600 A
Safety rating
cat III, cat IV
Additional features
frequency, with power measurement, harmonic
Other characteristics
AC/DC, true RMS, AC
Max DC voltage

1,000 V

Max AC voltage

1,000 V

Description

CAT IV Navigator™ Power Clamp Meter 600 A (AC) TRMS Easy to use navigation for precise measurements Complete with a full range of diagnostic capabilities including phase sequence, power and power factor, total harmonics distortion and individual harmonics, inrush current and low pass filter, the Beha-Amprobe Navigator Clamp serves as a first line of defense for spot checking and verifying system conditions before deploying more specialized tools -- or incurring additional costs. It is rated CAT IV 600 V, CAT III 1000 V meter with voltage measurement up to 1000 V AC/DC. The innovative navigation system eliminates confusing push buttons, and replaces them with a single joystick allowing the user to select functions directly on the display. Functions • Current, voltage and resistance measurement • Continuity beeper • Capacitance and frequency measurement • Measurement of active power • Measuring the power factor cos • Harmonics measurement for current and voltage values (up to the 25th harmonic) • Measurement of total harmonic distortion (THD) • Measurement of inrush current for motors Product information • Automatic and manual range selection • Integrated measurement memory (MIN/MAX and Data Hold) • Peak value memory (Peak Hold) • Rotary field measurement • Low pass filter for measurement of frequency converters • Large digit display with backlit display and analog bar graph • Jaw opening 37 mm • Auto Power Off Product highlights • AC/DC true RMS measurement (TRMS) • Automatic flashlight function on opening the jaws • Non-contact voltage detection • Functions can be selected via a joystick

VIDEO
