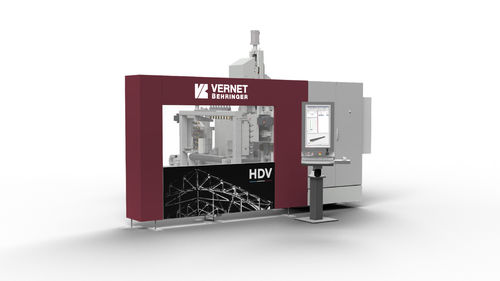

Profile CNC machining center HDV

3-axisverticalfor steel

The Vernet Behringer HDV lines are specially designed for drilling, milling and marking rectangular tubes and profiles from 40 x 40 mm to 1,000 x 450 mm section, on 3 or even 4 sides. They can be combined with a band saw and/or a shearing unit. These lines offer a unique versatility on the market. Maximise the use of your machine suitable for processing small angles (especially when using the optional shears), square tubes from 40x40 mm and H-profiles up to 700 mm width and more! Possibility of processing steel profile systems for doors and windows. Increase your production capacity Up to 60% faster than conventional drilling machines – thanks to the additional X-stroke of 200 mm on all three drilling units. This allows simultaneous drilling on the wings and in the web at different positions. With a spindle speed of up to 4,000 rpm and high torque, the HDV is ideal for powerful carbide drilling. Lowest wear The robust design of the machine minimises vibrations and ensures the longest possible tool life and optimum durability of the machine elements. The service life of the machine is significantly increased. High-performance spindle motors A belt drive between the motor and the machining spindle ensures very high torque at the spindle, even with lower motor power. Monitor your production User-friendly and powerful software suite allowing the optimization of your bar stock, the import and easy programming of your parts, the addition of information on your parts such as coding and slinging indications, manage and optimize your scrap stock. Make your machine communicate with your ERP.
