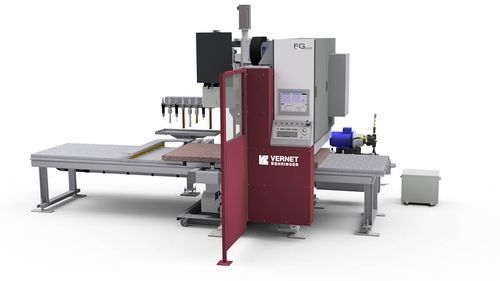

CNC drilling and milling machine FG2000

gantry typefor metal plateshigh precision

Overview
The plate processing machine FG2000 from Vernet Behringer performs drilling (HSS and carbide), milling (including long holes and large diameters), marking and hole deburring for gusset and connecting plates up to 2,000 x 1,000 x 60 mm.

Main capabilities

• Milling – high‑speed carbide milling for long holes and large diameters, vibration‑free thanks to the closed portal frame and permanently supporting table.
• Drilling – HSS and carbide drilling up to large diameters; maximum drilling diameter Ø50 mm.
• Marking – V‑scoring for visible marks after painting/galvanising; optional disc marking unit with 25 positions for rapid marking.
• Scribing / V‑scoring – fast, quiet scoring with low running cost for part identification and assembly position indication.

Product benefits

• Increase production capacity – closed portal frame and permanently supporting table enable high‑speed carbide drilling and vibration‑free milling for fast, consistent machining.
• Minimize non‑productive times – rear‑positioned grippers and ergonomic workstation ease loading/unloading.
• Ensure part identification and assembly positioning – exclusive V‑scoring system; optional 25‑position disc marking unit accelerates marking operations.
• Powerful control – PRONC3 user‑friendly programming software with 3D part display for straightforward import and programming.

Machining dimensions (key data)
Plate dimensions: 2,000 x 1,000 mm
Max. plate thickness: 60 mm
Max. weight: 600 kg
Max. drilling diameter: Ø50 mm

Characteristics (summary)
V‑scoring: fast scribing — Standard
Tool changer: 8 positions (Ø)
Drilling power: 16 kW
Rotation speed: 160 - 4,000 rpm
Machine control: PRONC3 with 3D part display

Technical specifications

• Model: FG2000
• Working range (plate dimensions): 2,000 x 1,000 mm
• Maximum plate thickness: 60 mm
• Maximum processed plate weight: 600 kg
• Maximum drilling diameter: Ø50 mm
• Drilling power: 16 kW
• Spindle speed: 160 - 4,000 rpm
• Tool changer: 8 positions
• Standard: V‑scoring (fast scribing)
• Control/software: PRONC3 with 3D part display
