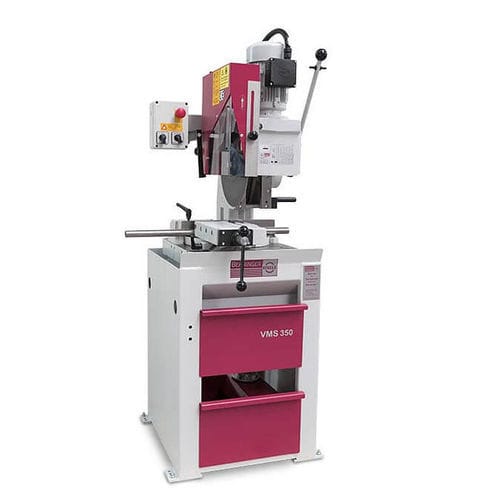

Circular saw VMS 350

for metalsfor tubesfor profiles

Overview
More than 250,000 cold saws sold worldwide. Simple operation, robust design and precise cuts make the metal-cutting VMS series reliable partners in workshops and factories. Suitable for cutting solid materials, tubes and profiles.

Core design
The heart of the VMS circular saw is the in-house worm gear unit with Eisele shock-absorbing feature. The heavy-duty gearbox and machine base provide smooth, low-vibration running, improving cut surface quality, blade life and overall machine service life.

Main features

• Worm gear unit with Eisele shock-absorbing feature — In-house gearbox design for long blade life and maximum durability.
• User-friendly mitre adjustment — Fixed stops for precise and quick mitre angle settings.
• Compact footprint — High productivity with a footprint under 1 m².
• Clean machine design — Integrated coolant unit and chip drawer in the machine base.
• High flexibility — Adaptable to different material flows.
• Sturdy machine base — Heavy stand and vibration-damping cast iron components for low-vibration sawing.
• Saw feed via safety snap-in lever — Quick setting to minimise saw travel.
• Micro spray system (option) — Minimum quantity lubrication for profiles, pipes and solid material; constant blade wetting for longer tool life and a cleaner workplace.
• Integrated coolant device — Coolant equipment integrated in the machine.

Cutting Range
Flat 90° — 170 x 100 mm
Flat 45° — 120 x 100 mm
Flat 30° — 85 x 100 mm (only to the right side)
Square 90° — 100 mm
Square 45° — 95 mm
Square 30° — 85 mm (only to the right side)
Round 90° — 120 mm
Round 45° — 120 mm
Round 30° — 100 mm (only to the right side)

Performance Characteristics
Drive power — 1.4 / 1.9 kW
RPM standard — 17 / 34 - 34 / 68 min-1
RPM optional — 10 / 20 / 40 / 80 min-1
Saw blade diameter — 350 mm
Saw feed — manual
Material clamping — manual

Dimensions and Weight
Length — 895 mm
Width — 665 mm
Height — 1,750 mm
Weight — 300 kg
Material support height — 900 mm

Individual configuration
VMS 350 can be configured with numerous options (measuring stops, feed systems, lubrication options and conveyor/measuring peripherals) to match specific production requirements. Options include micro spray lubrication systems and various speed configurations.

Technical specifications

• Model: VMS 350
• Brand: Behringer Eisele
• Saw blade diameter: 350 mm
• Drive power: 1.4 / 1.9 kW
• Speed (standard): 17 / 34 - 34 / 68 min-1
• Speed (optional): 10 / 20 / 40 / 80 min-1
• Cutting ranges: see Cutting Range section above (flat, square, round at 90°, 45°, 30°)
• Saw feed: manual (safety snap-in lever)
• Material clamping: manual
• Dimensions (L×W×H): 895 × 665 × 1,750 mm
• Weight: 300 kg
• Material support height: 900 mm
• Integrated features: worm gearbox (Eisele shock-absorbing), integrated coolant unit, chip drawer
• Optional: Micro spray lubrication system (minimum quantity lubrication), additional speed options and measuring/feeding systems
