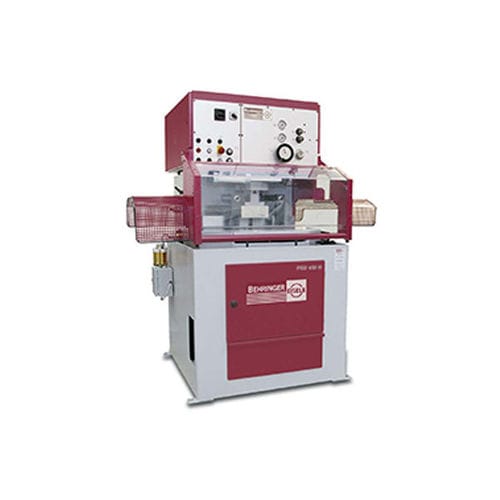

Miter saw PSU 450 H

circularfor metalsfor pipes

Overview
Semi-automatic mitre circular saw designed for cutting profiles, pipes and solid metal materials. Equipped with fixed mitre stops at 90°, 45° and 30°. Uses a 450 mm diameter saw blade and is intended for metal workshops and industrial fabricators.

Drive and Saw Unit
The PSU saw unit is built around an in-house worm gear with Eisele shock-absorbing feature. The robust drive and heavy machine base provide smooth, low-vibration operation to improve cut surface quality and saw blade life.

Key Features

• Optimum chip flow
  Effective chip removal, including when sawing tubes and hollow profiles, due to bottom-up saw feed.
• Extensive material range
  Suitable for flat, angle and solid material, pipes and special profiles for industrial and workshop use.
• Sturdy machine base
  Heavy stand and vibration-damping cast components ensure low-vibration sawing.
• High cutting quality
  Workpiece clamping on both sides of the blade ensures clean cut surfaces and tight tolerances.
• Durable drive unit
  Worm gear with Eisele shock-absorbing feature reduces vibrations and extends service life.
• Convenient mitre adjustment
  Lower-positioned saw unit enables easy mitre angle setting; fixed stops at 30°, 45° and 90° are standard.
• Micro spray lubrication
  Standard minimum quantity lubrication moistens the blade via a nozzle for longer tool life and a cleaner working environment.

Cutting Range (with adjustable material stop)
Flat 90°: 240 x 70 / 390 x 30 mm
Flat 45°: 170 x 70 / 280 x 30 mm
Flat 30°: 120 x 70 / 190 x 30 mm
Square 90°: 140 x 140 mm
Square 45°: 125 x 125 mm
Square 30°: 100 x 100 mm
Round 90°: 150 mm
Round 45°: 145 mm
Round 30°: 120 mm
Smallest round section: 10 mm
Smallest flat section: 10 x 10 mm

Performance Characteristics
Drive power: 3.0 / 3.6 kW
RPM standard: 6 / 12 / 24 / 48 min-1
RPM optional: 12 / 24 / 48 / 96 min-1
Saw blade diameter: 450 mm
Saw feed: hydraulic
Material clamping: hydraulic

Dimensions and Weight
Length: 1,450 mm
Width: 1,610 mm
Height: 1,900 mm
Weight: 1,350 kg
Material support height: 1,020 mm

Technical specifications

• Model: PSU 450 H
• Saw blade diameter: 450 mm
• Drive power: 3.0 / 3.6 kW
• Standard spindle speeds: 6 / 12 / 24 / 48 min-1
• Optional spindle speeds: 12 / 24 / 48 / 96 min-1
• Saw feed: hydraulic
• Material clamping: hydraulic
• Mitre angle fixed stops: 30°, 45°, 90°
• Cutting ranges (examples): Flat 90° up to 240 x 70 mm or 390 x 30 mm; Round 90° up to 150 mm
• Smallest sawn dimensions: round 10 mm; flat 10 x 10 mm
• Dimensions L x W x H: 1,450 x 1,610 x 1,900 mm
• Weight: approx. 1,350 kg
• Material support height: 1,020 mm
• Standard lubrication: minimum quantity (micro spray) cutting oil system
• Designed for: profiles, pipes, solid material and comparable metals
