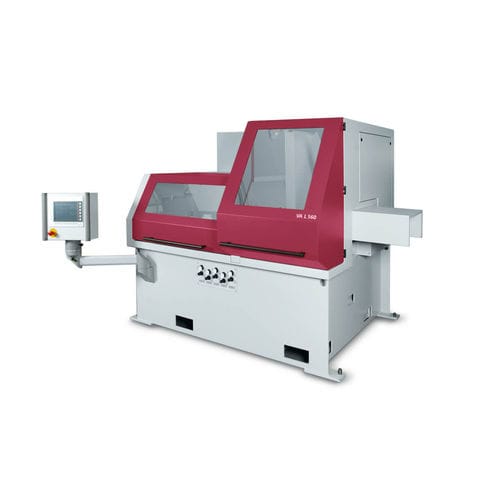

Circular sawing machine VA-L series

for aluminumfor non-ferrous materialsfor bars

The VA-L series aluminium saws define a whole new performance class with their design. Servo-driven axes and a harmonic drive gear guarantee high-performance and process-reliable operation from aluminium alloys to copper and brass alloys. Due to the technical features and the associated sawing performance, the sawing results meet requirements regarding the surface of Rz < 8 µm and cutting tolerances < 0.1 mm. In many cases, further processing of the surface is therefore no longer necessary. Green Deal. In the course of continuous improvement, sustainability also plays a major role in these aluminium saws. All components of the aluminum circular saws and their processes are designed with this in mind. On the one hand, this includes material processing in terms of chip flow and minimum rest piece length, but also machine components of the latest generation. The VA-L aluminium saws are equipped as standard with pneumatic short-stroke cylinders for material clamping and do not use any hydraulics. World innovation. Optionally, the VA-L aluminium circular saws can be equipped with servo-driven material clamping. In combination with the previously mentioned features, new standards are set in the areas of process reliability, output, sustainability and cutting results. Aluminium Circular Saws VA-L Series Servo motor feeding system for highest precision Our servo rocker defines a whole new performance class capable of achieving significantly higher cutting outputs with a constant saw feed rate. An additional efficiency benefit: minimized downtime due to precise positioning of the saw head at the material.
