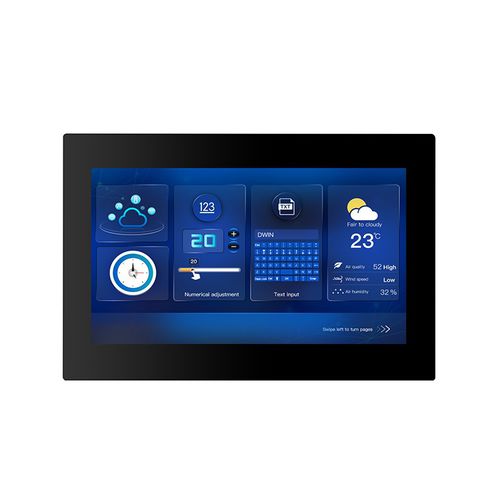

TFT LCD display module DMG10600C101_15WTR
IPStouch screencolor

TFT LCD display module - DMG10600C101_15WTR - Beijing DWIN Technology Co., Ltd. - IPS / touch screen / color
TFT LCD display module - DMG10600C101_15WTR - Beijing DWIN Technology Co., Ltd. - IPS / touch screen / color
TFT LCD display module - DMG10600C101_15WTR - Beijing DWIN Technology Co., Ltd. - IPS / touch screen / color - image - 2
Add to favorites
Compare this product

Characteristics

Screen type
TFT LCD, IPS, touch screen
Type
color
Format
1024 x 600
Screen size
10.1"
Applications
HMI
Interface
RS-232, RS-485
Other characteristics
wide-viewing angle
Width

223.2 mm
(8.7874 in)

Height

125.8 mm
(4.9528 in)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 70 °C
(158 °F)

Description

Features: ● Based on self-designed T5L2 ASIC, 16.7M Color, 24bit, 1024*600 Pixel; ● Resistive touch screen; ● RS232&RS485 Interface,8Pin3.81mm socket; ● Download via SD card or on-line serial port; ● Easy-to-use DWIN DGUS V7.6 GUIs Development, no coding skills required; ●Dual Development System: DGUS II/ TA(Instruction set); ● Wide viewing angle, 85°/85°/85°/85° (L/R/U/D) ● With GUI & OS dual-core, GUI with rich controls. DWIN OS kernel is open to the user for the second-development, via DWIN OS language or KEIL C51.
