CPU - Intel® Atom™ D525 Dual Core 1.8GHz
Main Chipset - Intel® ICH8M chipsets
Memory - 1GB DDR3 1333MHz SODIMM (up to 4GB)
Expansion - 1 x Mini-PCIe socket (PCIe + USB) for WLAN option 1 x Mini-PCIe socket (USB) for 3.5G module option 1 x GPS module

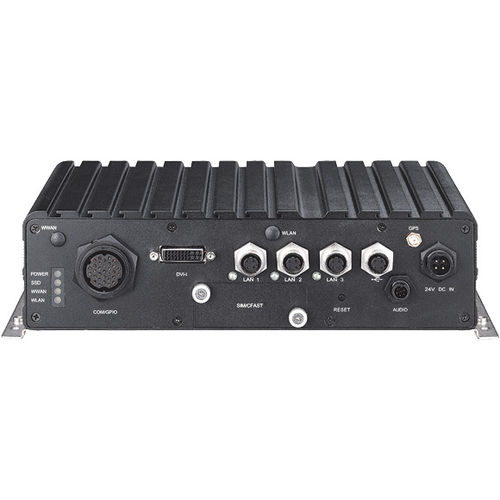

I/O Interface-Front - 1 x DVI-I connector with DVI-D and VGA output 1 x 26-pin circular connector in support of RS232/ 422/ 485 with isolation, 4-channel digital input and 4-channel digital output 1 x USB 2.0 with M12 connector 1 x Mic-in & 1 x Line-out 3 x 10/ 100 Ethernet with M12 connector Wireless communication
1 x External accessible SIM card socket
3 x Antenna holes for WWAN/ WLAN/ GPS 4 x LED for power, SSD, WWAN and WLAN DC Input
nROK3000-A: 24V with 500V isolated (range: 16.8V ~ 30V)
nROK3000-F: 110V with 1.5KV isolation (range: 77V ~ 137.5V)
I/O Interface-Rear - 1 x 2.5" accessible SATA SSD tray 2 x USB 2.0
Expandable Storage - 1 x 2.5" SATA SSD tray 1 x CFast slot with protection cover
Power Management - Status of ignition check by software Setting 8-level on/off delay time by software
Operating System - Windows Embedded Standard 2009 Windows Embedded Standard 7
System Dimension - 260mm (W) x 178mm (D) x 70mm (H) (10.24"x 7"x 2.76")
Construction - Aluminum enclosure with fanless design
Main Feature
- Built-in Intel® Atom™ D525 Dual Core 1.8GHz processor
- Fanless and rugged design
- Support ignition signal for delay-time control
- Easy maintenance
- Rich I/O interface with secure lock
- Removable 2.5" SSD tray
- Isolation RS-232/ 422/ 485 and GPIO
- DC power input with isolated protection
- Compliant with IP65 design
- Certified by EN50155
