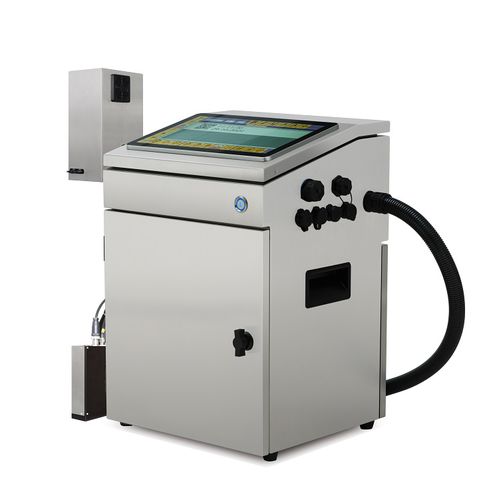

Continuous inkjet printer UH700

floor-standingindustrialmulti-function

UV series high resolution printers (with anti-counterfeiting and traceability code function) developed by Hi-Pack Coding adopt Qt + MSVC development platform which is convenient for the program to add extended windows functions to print various variable data in real time, including barcode, 2D code, date and time, shift group number, calculator, graphics, table, database, etc. Printhead has the built-in thermostat system, print voltage with the temperature adjustment, more stable printing state, the software provides an interface to support secondary development. Development Language: Qt + MSVC development platform, convenient for the program to add extended windows functions. Real-time Monitoring: detect multiple printheads，generate the height of the page to be printed automatically. Printhead Type:Industrial piezoelectric printhead. Printing Resolution:360 x 360 DPI. Print Conversion: Use qt dot matrix image conversion function to make the printed image more regular and clear. Throw Distance: 3mm – 5mm. Power Supply: 220VAC ± 10%, Properly wired and grounded. Hardware Configuration: 4-core processor, CPU frequency 1.83GHz, 4G RAM, storage memory 32G. Data Access: Provide a variety of signal data exchange solution, support USB3.0, network port communication to meet the diversified integration needs of system integration. Ink System: Pressurized negative pressure continuous ink supply system ensures stability. Curing Type: LED-UV curing. Printing Content: Barcode, 2D code, database, variable text, picture, logo, date, time, batch number, shift code and serial number, etc. Printing Height:Up to 72 mm. Printing Speed:0 – 100 m/min.
