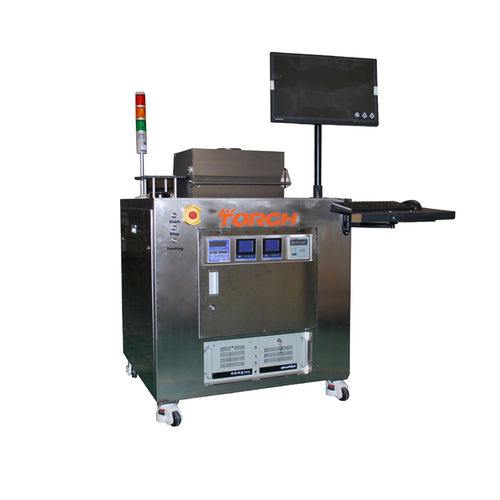

TORCH promotes a new Vacuum Reflow Oven in RS series which is the third
generation of its small Vacuum Reflow Oven (eutectic furnace). It especially designed for the fields in small batch production, R&D and functional materials test, etc.
1.It can realize welding under vacuum, nitrogen and reducing atmosphere. The 2-way process atmosphere system nitrogen and formic acid, nitrogen and formic acid are controlled by MFC mass flow meter, which precisely controls the input of process gas to ensure the consistency of each welding process.
2.Temperature control system independently developed by ourself TORCH, temperature control accuracy ±1 °C; 2 flexible (patented technology) temperature sensor in the device cavity, real-time testing the temperature of heating plate surface and fixture surface or internal, surface of the device, provides temperature feedback for components soldering, and the number of temperature sensors can be increased according to customer needs.
1.1 set vacuum reflow soldering furnace main machine.
2.1 set temperature control system (Torch technology).
3.2 sets Temperature measuring system (comrade technology).
4. vacuum system ①1 set vacuum pump (mechanical oil pump), ② 1 piece vacuum valve, ③1 piece vacuum gauge
5.1 set graphite heating platform (hard graphite).
6.1 set water cooling system (including water cooling machine).
7.1 set nitrogen atmosphere system.
8.1 set formic acid atmosphere system.
9.1 set vacuum reflow welding control software system (Torch software control system).
10.1 set industrial computer (advantech industrial computer).
11.1 set MFC mass flowmeter.
12.3 heating pipes and 2 thermocouples.
