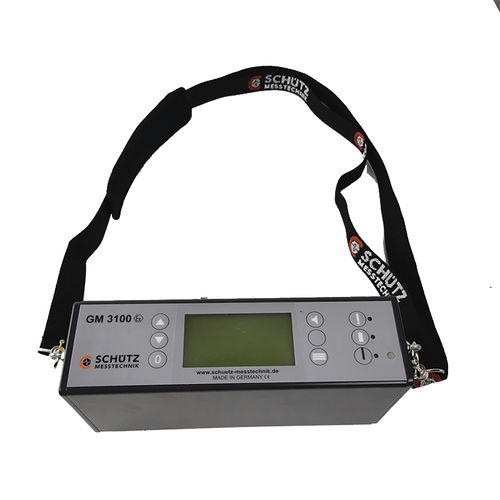

Gas leak detector GM3100

infraredfor pipelines

GM 3100 Using new infrared measurement technology, the instrument accurately identifies natural gas and CO2, eliminating cross-sensitivity issues. GM3100 is an all-in-one instrument for leak detection and primary line detection. Using new infrared measurement technology, the instrument accurately identifies natural gas and CO2, eliminating cross-sensitivity issues. FEATURE 1. Working area preview 2.Compensated CH4 and CO2 measurement 3. Easy maintenance with intelligent sensors 4. O2, H2S, CO can also be detected 5. Graphical menu 6. Flow rate preview 7. Durable aluminum housing Trolley-type probe: suitable for census work on flat roads and asphalt, can exclude such as car exhaust and other exhaust gas interference, the probe uses filters, filter hoses, connectors, equipped with rollers to move aspects, used for census gas pipeline network, along the path of probing. Bell-type probe: used to probe the gas leakage concentration of soft underground pipelines such as lawn, equipped with probe and hose two-stage filter, suitable for census of gas pipeline network using pumping method on the part of flat road Telescopic probe: this probe can be bent at will, and used to accurately measure the gas concentration of difficult-to-access pipelines, such as the 2-meter range of overhead pipelines or pipeline flange joints, etc. Conical probe: used for borehole positioning measurement, built-in water separator can prevent the inhalation of water vapor in the pipe, vertebrae 30CM or 55CM for deeper borehole gas monitoring work.
