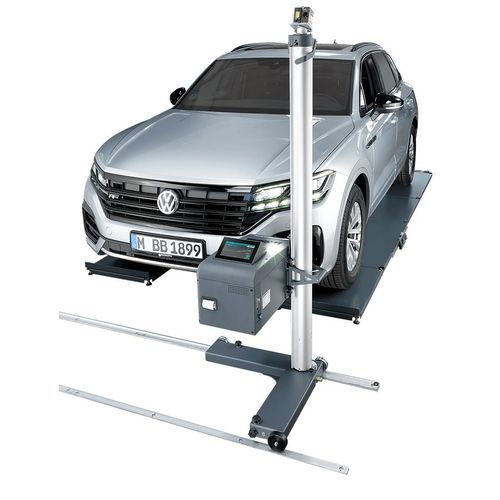

Headlight beam tester 1 692 104 354

Digital headlight testing with MLD 9000: intelligent, fast and precise Precise green alignment lasers for accurate alignment with the vehicle. Green laser diodes are particularly well visible to the human eye because the eye has its maximum spectral sensitivity in the green range Cross laser function for precise positioning in the center of the headlight For all light sources (Xenon, Bi-Xenon, LED, Bi-LED, Halogen) and glare-free high-beam systems (Dynamic Light Assist - DLA, Matrix1, HD-Matrix2, ILS Ford) All types of vehicles (passenger cars, trucks, motorcycles) All types of headlights (main headlights, fog lamps, auxiliary lamps) High-resolution (5 megapixel) CMOS camera for real-time digital image processing Measurement results in real time optimized with live images Comparison between measured and limit values and unambiguous red/green evaluation Saving and archiving of the measured values ​​in database Reporting of the measurement result possible via PDF Time-saving quick measurement functionality Precise definition of the cut-off line without disrupting blue fringe Workshop-proof touch-screen display (7") Continuously swiveling display for a variety of applications (such as the MOT for testing or in the workshop for adjustment) and for adapting to the local lighting conditions Intuitive and simple user guidance Visual and acoustic signals support the measurement procedure Independent operation thanks to battery Measured values: Horizontal and vertical deviation (pitch angle), intensity, roll angle, yaw angle Ports: LAN, USB, RS232 Live firmware update possible
