Car tyre changer 1 692 401 014
automatichorizontalvertical

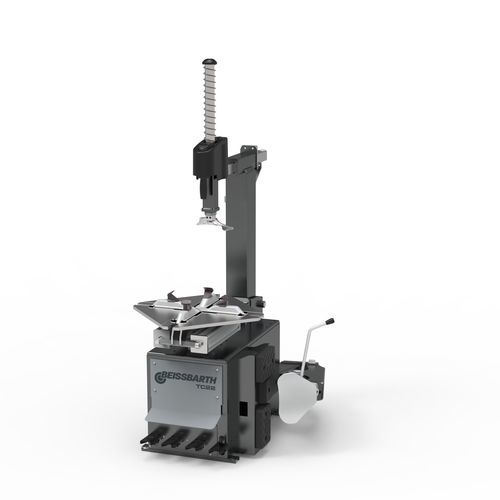

Car tyre changer - 1 692 401 014 - » BEISSBARTH Automotive Testing Solutions GmbH - automatic / horizontal / vertical
Car tyre changer - 1 692 401 014 - » BEISSBARTH Automotive Testing Solutions GmbH - automatic / horizontal / vertical
Car tyre changer - 1 692 401 014 - » BEISSBARTH Automotive Testing Solutions GmbH - automatic / horizontal / vertical - image - 2
Add to favorites
Compare this product

Characteristics

Applications
for car
Type
automatic
Structure
vertical, horizontal
Other characteristics
pneumatic
Clamping diameter

Min.: 10 in

Max.: 25 in

Max wheel diameter

39 in

Max wheel width

12 in

Description

Square turntable with automatic centering jaws Clamping range from 10-25" Double 80mm cylinders for maximum clamping power 1 rotation speed: 7,5 rpm Square shape for easier lever use Robust mounting column and head Easy tilting via pedal Quick vertical and horizontal movement of arm Pneumatic locking Powerful bead breaker side shovel Quick and effective loosening of the bead Up to 12" tyre width Three-way adjustable blade Controlled via pedal Anti-skid rubber pad protects tyre and rim Full control with four pedals Pedal control for rotation, side shovel, column tilting, and clamping Removable pedal unit for easier maintenance High rigidity by design Full metal pedals Powerful 50x50mm horizontal arm Metal front cover Upgrade options: TCX.PRO assistance column Side lift Tubeless inflation kit Roller board Note: unit comes with disassembled pole Scope of deliveries: 5x front head protection 2x rear head protection Inflation gun Standard lever Brush Power plug
