Car tyre changer 1 692 401 010
automatichorizontalvertical

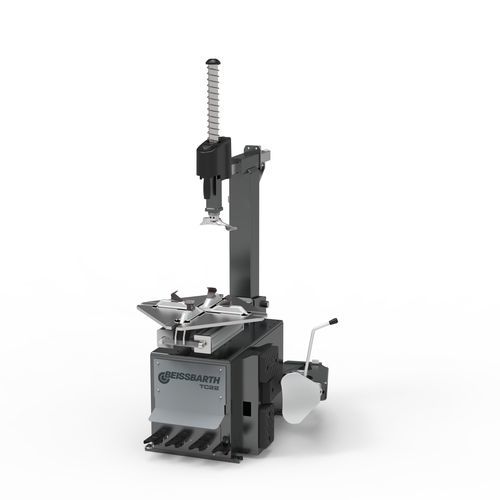

Car tyre changer - 1 692 401 010 - » BEISSBARTH Automotive Testing Solutions GmbH - automatic / horizontal / vertical
Car tyre changer - 1 692 401 010 - » BEISSBARTH Automotive Testing Solutions GmbH - automatic / horizontal / vertical
Car tyre changer - 1 692 401 010 - » BEISSBARTH Automotive Testing Solutions GmbH - automatic / horizontal / vertical - image - 2
Add to favorites
Compare this product

Characteristics

Applications
for car
Type
automatic
Structure
vertical, horizontal
Other characteristics
pneumatic
Clamping diameter

Max.: 25 in

Min.: 10 in

Max wheel diameter

39 in

Max wheel width

12 in

Description

Square turntable with automatic centering jaws Double 80mm cylinders for maximum clamping power 2 rotation speeds: 8 & 16 rpm Square shape for easier lever use Robust mounting column and head Easy tilting via pedal Quick vertical and horizontal movement of arm Pneumatic locking Powerful bead breaker side shovel Quick and effective loosening of the bead Up to 12" tyre width Three-way adjustable blade Controlled via pedal Anti-skid rubber pad protects tyre and rim Full control with four pedals Pedal control for rotation, side shovel, column tilting, and clamping Removable pedal unit for easier maintenance High rigidity by design Full metal pedals Powerful 50x50mm horizontal arm Metal front cover TI: Tire inflation via claws Fast and secure gripping of the bead on the rim Both hands free during inflation and bead seating Minimizes the risk of air leaks or tire bursts Easy tire inflation via claws 18-liter air tank Upgrade options: TCX.PRO assistance column Side lift Tubeless inflation kit Roller board Note: unit comes with disassembled pole Scope of deliveries: 5x front head protection 2x rear head protection Inflation gun Standard lever Brush 400V plug
