Truck brake tester BD 8000
mobileroller

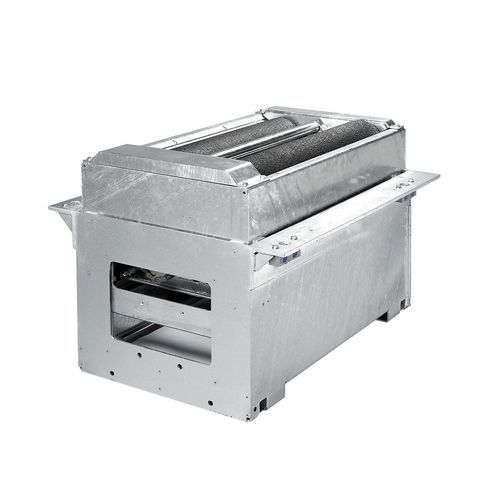

Truck brake tester - BD 8000 - » BEISSBARTH Automotive Testing Solutions GmbH - mobile / roller
Truck brake tester - BD 8000 - » BEISSBARTH Automotive Testing Solutions GmbH - mobile / roller
Add to favorites
Compare this product
Go to the » BEISSBARTH Automotive Testing Solutions GmbH website for more information

Characteristics

Applications
for trucks
Other characteristics
roller, mobile
Power per motor

11 kW, 13.5 kW
(14.96 hp, 18.35 hp)

Maximum load

18 t
(19.84 us ton)

Description

BD 8000: The truck brake tester for the most demanding requirements
  • For trucks with an axle load of up to 18 tons
  • Fully galvanized
  • Electromagnetic engine brake
  • Quartz-coated premium rollers with a length of 1000 mm


Fully equipped with no compromises
  • 8-point scale for measuring axle weight and deceleration
  • 2 rotation speeds
  • 4x4 automatic all-wheel drive detection
  • Speed sensor
  • 50 mm roller elevation for precise and safe testing
  • Including ICperform software
  • Including ICperform tablet app


Hydraulic load simulation: Testing without stopping
  • Lifting device for load simulation with 200 mm stroke
  • Eliminates the need for manual lashing with tensioning straps or chains on each individual axle
  • Convenient operation from the driver seat without getting out
  • Suitable for trucks, trailers and semi-trailers
  • Particularly recommended for empty or light trucks
  • Compact integration in the roller housing


Display options: analog, digital or mobile
  • Analog: Classic display on analog display
  • Digital: Full control with ICperform software on PC
  • Mobile: Measurement values directly on the tablet in the driver seat


ICperform software
  • Intuitive and quick to use
  • Targeted control of any axle
  • Clear display of axle weight, brake force difference, minimum braking, brake pressure per axle, runout, rolling resistance, etc.
  • Print and database function
  • Networking with other test devices in the test lane


ICperform via tablet app
  • No constant getting in and out
  • Measurement values directly from the driver seat
  • Convenient control of the entire test procedure


Modularly expandable at any time
  • APS3 wireless pressure sensors: wireless measurement of pressure values in truck or trailer braking systems
  • BPF 200 wireless pedal force meter: wireless measurement of pedal pressure for repeatable braking
  • MSS 8400 quick-track tester: measures axle play and straight-line stability for axle alignment recommendations
  • GST8508 and GST8600 joint play testers: quick detection of defects and wear in the wheel suspension


Scope of delivery
  • 2x roller set with weighing function and hydraulic load simulation
  • Control cabinet
  • 30 m cable set
  • ICperform software
  • ICperform tablet app
  • Remote control for software
  • Remote control for load simulation
  • Minimum PC requirements: Windows 11 Professional, CPU 3 GHz (Intel Pentium Gen 12), 8 GB DDR5, 512 GB SSD, 6x USB, 1x RS232 (for infrared remote control), 1x LAN. The additional use of a tablet requires a PC with ICperform software and a Wi‑Fi network with router.


Article number
  • 1691810126


Technical specifications
  • Electrical connection: 400 V
  • Length: 1350 mm
  • Height: 782 mm
  • Width: 1140 mm
  • Max. wheel diameter: 1200 mm
  • Measuring system: DMS
  • Roller length: 1000 mm
  • Roller elevation: 50 mm
  • Roller diameter: 280 mm
  • Min. test width: 900 mm
  • Max. test width: 2900 mm
  • Min. wheel diameter: 320 mm
  • Roller axle distance: 438 mm
  • Weight without lifting device approx.: 750 kg
  • Motor connection cable: 7 x 4 mm²
  • Test speed (low): 2 km/h
  • Test speed (high): 5 km/h
  • Maximum axle lift capacity: 8.9 t
  • Motor revolution speed (low): 1450 rpm
  • Motor revolution speed (high): 2950 rpm
  • Roller revolution speed (low): 50 rpm
  • Roller revolution speed (high): 100 rpm
  • Motor power (low): 2 x 11 kW
  • Motor power (high): 2 x 13.5 kW
  • Max. axle load testable: 18 t
