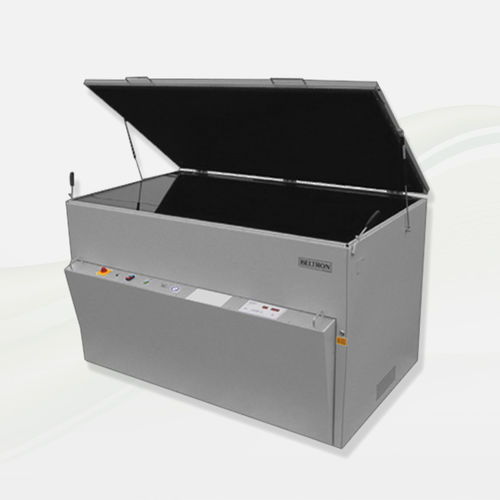

Exposure unit with drawer Beltroframe S

for single side exposurefor screen printingUV

Application:
For exposure of screen printing frames from below.

Design:
The BELTROFRAME S comprises a self-supporting metal housing with a fixed, streak-free UV special glass pane and a top frame with quick-closing fastener. Equipment includes a highly elastic diamond-coated rubber cover, suction nozzles, CU earth tape for antistatic discharge and a system for creating a homogeneous vacuum. The unit is supplied with a BELTROLUX quick-start copier lamp (3000 W, 5000 W or 6000 W) and a dedicated UV high-performance reflector.

Key details:

• ESG glass (fixed, streak-free)
• Exposure from below
• Specially designed UV high-performance reflectors inside the machine
• Beltromat 815 control computer (control computer options available)

Advantages:

• Complete, uniform exposure
• Very short exposure times
• Energy-saving systems (quick-start lamps minimise standby times; up to 80% energy saving with special reflectors)
• Immediate further processing possible
• Highly scratch-resistant, glossy results with increased chemical resistance

Used successfully in:

• Printing industry
• Electronic industry
• Packaging industry
• Automotive industry

Technical information (art.-no. / max. screen frames in mm / lamp power):
Art.-No.: 52.159 / max. screen frames: 750 x 800 / Lamp power: 3000 W
Art.-No.: 52.165 / max. screen frames: 750 x 800 / Lamp power: 5000 W
Art.-No.: 52.166 / max. screen frames: 900 x 1000 / Lamp power: 3000 W
Art.-No.: 52.167 / max. screen frames: 900 x 1000 / Lamp power: 5000 W
Art.-No.: 52.163 / max. screen frames: 1100 x 1350 / Lamp power: 3000 W
Art.-No.: 52.164 / max. screen frames: 1100 x 1350 / Lamp power: 5000 W
Art.-No.: 52.170 / max. screen frames: 1100 x 1350 / Lamp power: 6000 W
Special sizes on request

Options / Accessories (selection):

• Art.-No. 60.006
• Art.-No. 48.033
• Art.-No. 60.999

Description (additional items):

• Insertion lamp, yellow
• Control computer BELTROMAT 8100 (option)
• Increased-strength vacuum pump to reduce vacuum time

Characteristics / technical specifications:

• Model: Beltroframe S
• Exposure direction: from below
• Glass: ESG fixed, streak-free UV special glass pane
• Lamp types / power: BELTROLUX quick-start lamps 3000 W, 5000 W, 6000 W
• Reflectors: specially designed UV high-performance reflectors inside the machine
• Control: Beltromat 815 (option: Beltromat 8100)
• Vacuum: homogeneous vacuum via suction nozzles and CU earth tape; maintenance-free high-performance vacuum pump (option for increased-strength pump)
• Cover: highly elastic diamond-coated rubber cover
• Service: retractable slide-in lamp unit for easy lamp exchange
• Applications: printing, electronics, packaging, automotive industries
• Article numbers and matching max screen sizes and lamp powers as listed above
