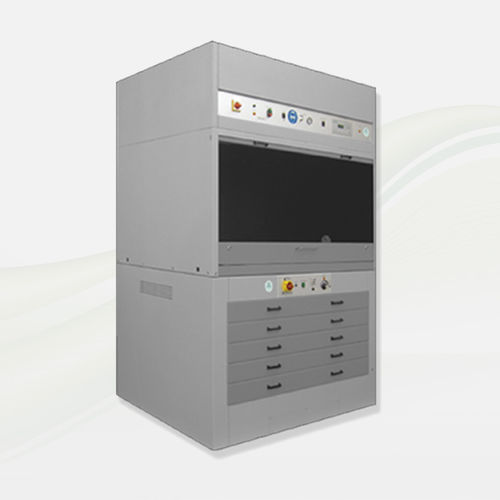

Exposure unit with drying cabinet

with drawerfor screen printing

Application:
For exposure and drying of screen printing frames. A compact solution where floor space is limited.

Design:
The proven BELTROQUICK copying device used in screen printing, combined with an integrated horizontal screen drying cabinet as a base unit. Both units are supplied in BELTRON quality and offered at a lower cost than the separate devices.

Combination details:

• Beltromat control computer for managing complete exposure sequences (Beltromat 8100)
• Integrated horizontal screen drying cabinet
• Base unit with 4 smoothly operating drawers for mounting screens

Product features / Highlights:

• Control computer: Beltromat 8100
• Lower part with 4 easy pull-out racks
• Designed for exposure and drying of screen printing frames

Advantages:

• Decades of German engineering experience (BELTRON)
• Uniform, complete exposure
• Very short exposure times
• Energy-efficient systems
• Immediate further processing possible after exposure
• Highly scratch-resistant and glossy results
• Durable with increased chemical resistance

Uses / Applications:

• Printing industry
• Electronics industry
• Plastics industry
• Construction materials industry
• Textile industry
• Packaging industry
• Pharmaceutical industry
• Automotive industry
• Glass industry
• General engineering

Dimensions / Formats:
Outside dimensions mm
1070 x 2050 x 900
1400 x 2450 x 1160
1600 x 2650 x 1350
Special sizes on request

Screen format mm
500 x 700
800 x 1000
1000 x 1250

Offset format mm
626 x 840
925 x 1130
1035 x 1310

Product information / Datasheet:
PDF datasheet available for the product (product sheet "Combination").

Technical specifications:

• Model name: BELTROQUICK
• Control computer: Beltromat 8100
• Integrated horizontal screen drying cabinet as base unit
• Base part with 4 smoothly operating drawers / 4 easy pull-out racks for mounting screens
• Designed for exposure and drying of screen printing frames
• Complete, uniform exposure with very short exposure times
• Energy-saving sustainable systems
• Allows immediate further processing after exposure
• Highly scratch-resistant and glossy results
• Durable with increased chemical resistance
• Outside dimensions (standard sizes; special sizes on request)
• Screen format options: 500 x 700 mm; 800 x 1000 mm; 1000 x 1250 mm
• Offset format options: 626 x 840 mm; 925 x 1130 mm; 1035 x 1310 mm
