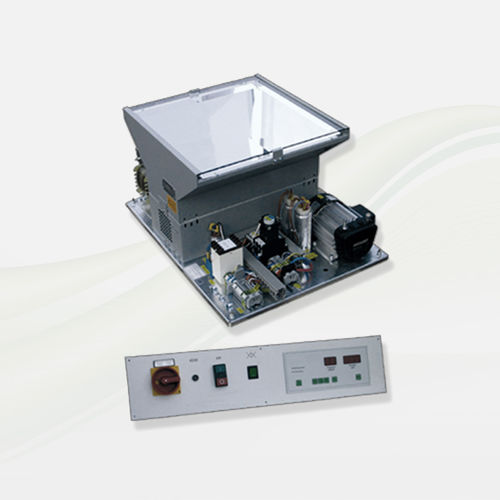

Screen printing exposure unit BELTROLUX W

UV

Application
Build-in kit for copying devices of various types and manufacturers. Available in 3000 W, 5000 W and 6000 W versions. Suitable for horizontal, vertical and device-mounted configurations.

Design
The BELTROLUX W uses a direct-start control that removes pre-heating; the UV emitter reaches its full spectral output immediately after switching. A high-gloss reflector delivers precise, uniform illumination and reduces standby losses, enabling energy savings up to 80 %. Ozone-free UV emitters are used.

Details

• Main on/off switch
• Instant-start copy lamp: 3000 W, 5000 W, 6000 W
• BELTROMAT control computer (option)
• Front panel with indicator/control lamps

Advantages

• Immediate full-output start — no warm-up
• High-efficiency reflector for uniform curing
• Short curing times and immediate further processing
• Reduced standby consumption — up to 80% energy saving vs. previous designs
• Ozone-free UV emitters
• Available mounting variants for horizontal, vertical and built-in applications

Applications / Uses

• Printing industry
• Electronic industry
• Packaging industry
• Pharmaceutical industry
• Automotive industry
• Glass industry

Standard models — MH copy lamps for horizontal exposure
Art.-No.: 49.227, 49.228, 49.252

• Description: Beltrolux 3000 D / 3000 W; Beltrolux 5000 D / 5000 W; Beltrolux 6000 D / 6000 W
• Lamp power: 3000 W; 5000 W; 6000 W

Standard models — MH copy lamps for vertical exposure
Art.-No.: 49.225, 49.226, 49.251

• Description: Beltrolux 3000 D / 3000 W; Beltrolux 5000 D / 5000 W; Beltrolux 6000 D / 6000 W
• Lamp power: 3000 W; 5000 W; 6000 W

Standard models — MH copy lamps for mounting kits in devices
Art.-No.: 49.232, 49.233, 49.253

• Description: Beltrolux 3000 D / 3000 W; Beltrolux 5000 D / 5000 W; Beltrolux 6000 D / 6000 W

Options
Art.-No.: 59.067, 59.042, 59.068, 60.055, 48.006, 59.011

• Ceiling fixing, complete, incl. manual winder with locking function (for horizontal exposure)
• Tripod for vertical exposure
• Pulse counter to display executed exposures
• Surcharge for special connection voltage
• BELTROMAT 8100 control computer
• UV photocell

Starebulbs (Gallium)
Art.-No.: 28.127, 28.124, 28.122, 28.182

• Description: Quickstart bulb
• Lamp power: 1000 W; 3000 W; 5000 W; 6000 W

Technical specifications

• Product family: BELTROLUX W
• Available lamp powers: 3000 W, 5000 W, 6000 W
• Lamp type: MH copy lamp, instant/direct start
• Mounting variants: horizontal, vertical, built-in kit
• Key features: direct-start control, high-gloss reflector, ozone-free UV emitters
• Energy savings: up to 80% compared to earlier systems (by eliminating standby and improving reflector efficiency)
• Standard features: main switch, front panel with indicator lamps
• Optional control: BELTROMAT 8100
• Important article numbers (selection): 49.225, 49.226, 49.227, 49.228, 49.232, 49.233, 49.251, 49.252, 49.253
• Options article numbers (selection): 59.067, 59.042, 59.068, 60.055, 48.006, 59.011
• Spare bulbs (Gallium) article numbers: 28.127, 28.124, 28.122, 28.182
• Suitable industries: printing, electronics, packaging, pharmaceutical, automotive, glass
