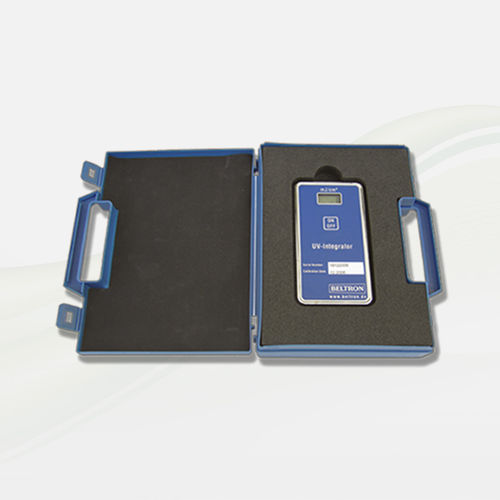

UV integrator Typ I

Application:
BELTRON UV integrators are used for the detection of energy in UV hardening systems, UV drying ovens, UV exposure systems, printing plate exposure systems and other graphic devices. Inspecting the UV light metering level and corresponding adjustments in the production process help prevent incorrect exposures and material scrap.

Design:
A sensor located on the underside of the device detects UV radiation. Special filters and photodiodes absorb visible and IR wavelengths so that only the desired spectral range is measured. The total UV metering level is displayed on a 6-digit LCD.

Details:

• LCD display (6 digits) 0 - 999999 mJ/cm²
• On / Off switch (including Automatic Off)
• Transport/storage case included
• Power supply: 3.6 V lithium battery

Advantages:

• 60 years quality Made in Germany
• Innovative UV technology
• Complete, even UV-curing
• Very short curing times
• Sustainable energy-saving systems
• Immediate further processing possible
• Highly scratch-resistant and glossy finish
• Durable with increased chemical resistance

Applications (used successfully in):

• Printing industry
• Electronic industry
• Plastics industry
• Building materials industry
• Textile industry
• Packaging industry
• Pharmaceutical industry
• Automotive industry
• Glass industry
• Engineering

Technical specifications:

• Display: 6-digit LCD 0 - 999999 mJ/cm²
• Dimensions: 80 x 145 x 12 mm
• Weight: approx. 500 g
• Switch: On / Off / Automatic Off
• Power supply: 3.6 V lithium battery
• Current consumption: 100 µA (approx. 10,000 operating hours)
• Housing: chrome-plated aluminium
• Spectral measuring range: 250 - 410 nm (other ranges available)
• Sensor on underside; filters and photodiodes block visible and IR wavelengths to measure only the UV range
• Includes handy storage case
