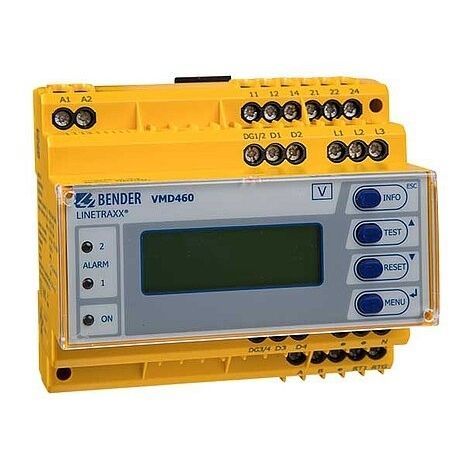

Voltage monitoring relay LINETRAXX® VMD460-NA

frequencyDIN railRS485

Network and system protection with default basic programs for national standards and regulations G99/1-4:2019 G98/1-4:2019 Island network detection df/dt (ROCOF) vector shift Interface RS-485 (data exchange/parameter setting) Continuous monitoring of the phase voltage and line-to-line voltage Remote shutdown via ripple control signal receiver The VMD460-NA is an external network and system protection (NS protection) the purpose of which is to disconnect the power generation system from the grid by coupling switches in the event of inadmissible threshold values. If voltage and frequency measurements on the power generation system are outside the thresholds required in the standards, the relays of the VMD460-NA will switch. The VMD460-NA is multifunctionally adjustable. The currently measured values are continuously shown on the LC display. The measured values leading to the tripping of the relays are stored. Features Straightforward commissioning due to pre-set basic programs for national standards and regulations G99/1-4:2019 G98/1-4:2019 Single-fault tolerance Monitoring of the connected coupling switch (configurable: NC/NO/off) Islanding detection df/dt (ROCOF) Vector shift Interface RS-485 (data exchange, parameter setting) Test function for the determination of the disconnection time Test button for the trigger circuit The last 300 distribution network faults can be recalled with time stamp/real-time clock Continuous monitoring of the phase and line-to-line voltage Separate switching conditions after a threshold infringement Language selection (German, English, Italian) Backlit graphics LC display Remote shutdown via ripple control signal receiver
