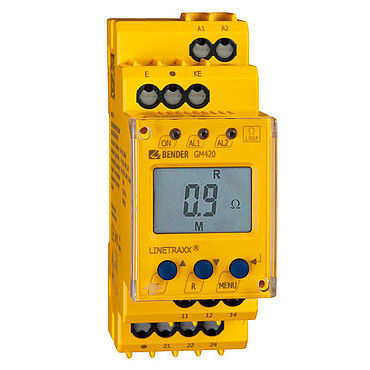

Voltage monitoring relay LINETRAXX® GM420

ACfor electric motorsDIN rail

The GM420 series loop monitor is designed to monitor the resistance of PE conductor connections in AC systems and in de-energised systems. The extraneous voltage Uf between the terminals E and KE must not exceed AC 12 V. The ohmic resistance of the conductor loop and the AC extraneous voltage Uf, if existing, will be indicated on the display. The currently measured value is continuously indicated on the LC display. If the measured resistance value increases above the set response value, the alarm will be activated and stored. Adjustable time delays allow installation-specific requirements to be considered. Features Loop monitoring of the PE conductor in AC systems Measuring circuit providing a high resistance against extraneous voltages and indication of extraneous voltages Adjustable start-up delay, response delay and delay on release Adjustable switching hysteresis Digital measured value display via multi-functional LC display Preset function (automatic setting of basic parameters) LEDs: Power On, Alarm 1, Alarm 2 Measured value memory for operating value Continuous self monitoring Internal test/reset button Two separate alarm relays with one changeover contact each N/C or N/O operation and fault memory behaviour selectable Password protection for device setting Sealable transparent cover Two-module enclosure (36 mm) Push-wire terminal (two terminals per connection) RoHS compliant Applications Loop monitoring of motors Loop monitoring of PE conductor connections for wire interruptions in electrical installations Monitoring of earthing systems
