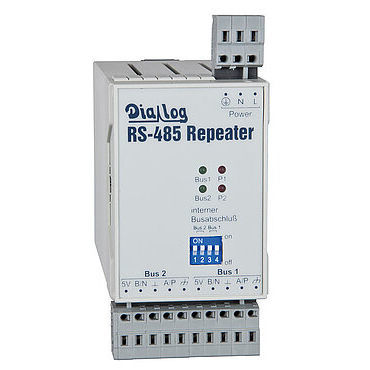

Network repeater DI-1DL

RS-485interfaceDIN rail

The RS-485 interface repeater DI-1PSM is designed for signal amplification on the RS-485 interface (BMS bus). This is required when the network distance exceeds a length of 1200 m and when more than 31 bus nodes exist. Features Plastic enclosure for DIN rail mounting Dynamic baud rate setting Galvanic separation between the input and output circuit and the power supply – overvoltage protection Supply voltage 85…260 V, AC 50…60 Hz Applications Extension of the maximum possible bus length by 1200 m in BMS systems (EDS, RCMS, MEDICS® systems) Extension of the maximum possible bus nodes by 31 Protection against spikes by galvanic separation between the input and output circuit and the power supply
