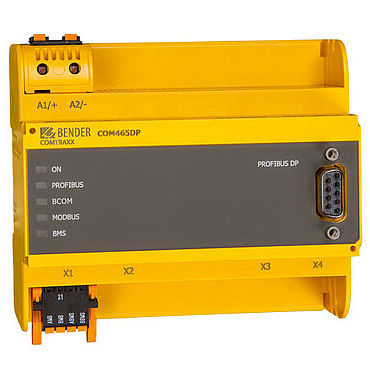

Condition monitoring device COMTRAXX® COM465DP

measurementinternetEthernet

Complete system overview Parameter setting for all Bender devices All Bender communication interfaces including Profibus-DP Displayed in the web browser, local software installation therefore not required Adaptable to individual requirements by means of function modules The COM465DP is a Condition Monitor with an integrated gateway. The intuitive COMTRAXX user interface provides a perfect system overview and allows simple and intuitive parameterisation of all connected devices. The user interface is based on HTML5 and is therefore future-proof and provides barrier-free access. The COM465DP transmits data of all devices in the system via PROFIBUS-DP, Modbus TCP, Modbus RTU, SNMP and PROFINET. TThis allows requests of all Bender devices with communication capability, such as EDS, RCMS, MEDICS or PEM systems, to be integrated into the protocols mentioned. It provides several interfaces and can therefore integrate all Bender devices and also third-party devices into the system. Existing interfaces: RS-485 D-Sub: PROFIBUS-DP RS-485: BMS, Modbus RTU Ethernet: MQTT, BCOM, Modbus TCP, SNMP, PROFINET In addition, the functionality can be extended by function modules. This makes it possible to adapt the device to the respective requirements. Features Condition Monitor for Bender systems Integrated modular gateway between Bender systems and TCP/IP enables remote access via LAN, WAN or the Internet Range of functions adjustable through function modules Ethernet (10/100 Mbit/s) for remote access via LAN, WAN or the Internet Support of devices connected to the internal or external BMS bus via BCOM, Modbus RTU or Modbus TCP
