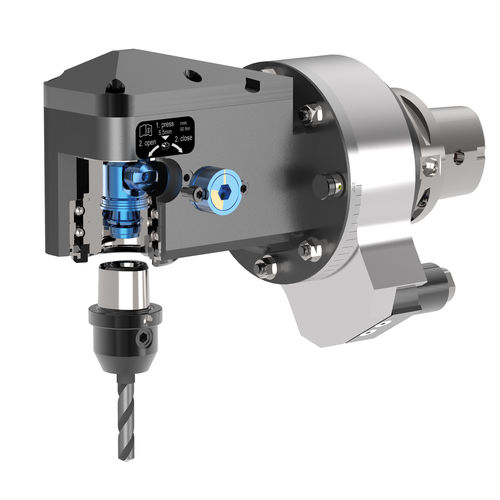

CAPTO angle head BENZ CAPTO™90°for machining unitsmilling
Add to favorites
Compare this product
Characteristics
- Type
- 90°
- Applications
- for machining units, milling, for industry, cutting, sawing, boring
- Other characteristics
- compact, modular, CAPTO
Description
The modular quick change system BENZ CAPTO™ guarantees an extremely compact desgin by being integrated into the spindle. Special clamping kinetics for clamping forces are noticeably above the required range of ISO/DIS 26623-2.
BENZ CAPTO™ can be used for milling, drilling and turning, with up to 100 bar coolant pressure. The system is especially suited for heavy duty milling and machining.
Performance
BENZ CAPTO™ can be used for milling, drilling and turning, with up to 100 bar coolant pressure. The system is especially suited for heavy duty milling and machining.
Performance
- compact design/short implementation
- special clamping kinetics for clamping forces are noticeably above the required range of ISO/DIS 26623-2
- pressure of coolant up to 100 bar
- ideal for heavy milling
- stability and rigidity with high flexibility at the same time
- compact shape guarantees high cutting speeds and surface quality
- fast tool change with additional locking mechanism (ratcheted)
- optically visible clamping position 100°
- starting torque: 50 Nm (C4)
- from 75 degrees onwards the clamping process is already so secure that the tool can be used in production
- visual markings > correct clamping of the tool is easily seen
- additional safety function > prevents uncontrolled falling out of the tool holder
