Industrial nitrogen generator N₂ BOX 1700

for the pharmaceutical industrypackagingfor the food industry

Product information

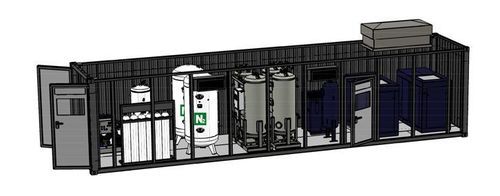

Product presented: N₂ BOX 1700, containerized solution with NITROBERG 1700. Containerized on-site nitrogen production system (PSA) designed and manufactured in Germany. Complete documentation supplied for the container and plant installation (see Documentation block).

Container documentation

• Assembly layout drawing
• P&ID / R&I diagram
• Plant description
• List of electrical/electronic consumers
• Operation and maintenance manual
• Spare and wear parts list
• Wiring diagram
• Terminal diagrams
• Functional drawings
• Material certificates

PSA nitrogen generator package (MADE IN GERMANY)

• Compressed air station
• Compressed air treatment to ISO 8573-1 Class 1.4.1
• Compressed air buffer tank
• PSA nitrogen generator (NITROBERG series)
• Nitrogen system tank
• Booster station for high-pressure N₂
• Plant mounted on metal skid frame
• Plant installed in a 45-inch container as N₂ BOX

Applications (examples)

• Food packaging: modified atmosphere packaging (MAP), shelf-life extension
• Beverages: oxygen removal in bottles and cans
• Coffee and snack production: preservation and packaging
• Automotive, mining, cement, steelworks
• Chemical and pharmaceutical industries
• Semiconductor and electronics manufacturing (inerting, solder/reflow processes)
• Medical applications (breathable air, laboratory equipment)
• Oil & gas: purging, inerting, nitrogen injection
• Aerospace: inerting and flushing operations

Additional notes
Supply includes core documentation for frame layout (assembly drawing, P&ID, electrical and terminal diagrams, maintenance manual, parts lists). Compliance with applicable standards and regulations is required (e.g. DIN, VDI/VDE, IEC, UVV). Additional standards (ASME, ATEX, GL, BV, etc.) can be applied on request.

Technical characteristics / specifications

• Model: N₂ BOX 1700
• Product reference (SKU): 1030201700
• Manufacturer / Brand: BERG Kompressoren GmbH
• Weight (item): 621 kg
• Availability: No longer available
• Price (net, excl. VAT) shown on product page: €300,760.00
• Indicative price (with VAT shown on page): €357,904.40
• Compressed air quality: ISO 8573-1 Class 1.4.1
• Installation: skid-mounted or in 45-inch container (N₂ BOX)
• Included components: compressed air station, treatment, storage tanks, PSA generator, nitrogen tank, booster station, wiring and documentation
