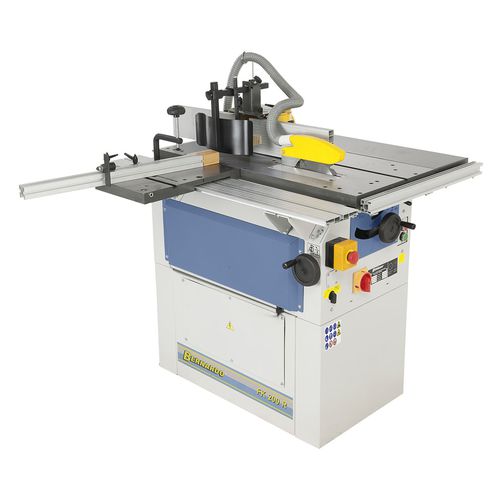

Wood saw-spindle molder FK 200 R

wood saw-spindle molder
wood saw-spindle molder
wood saw-spindle molder
wood saw-spindle molder
wood saw-spindle molder
Add to favorites
Compare this product


Characteristics

Applications
for wood
Revolutions per minute

6,500 rpm
(40,841 rad.min-1)

Description

The FK 200 R circular saw & spindle moulder comes complete with a roller table. The small and compact construction makes this model ideal for amateurs. Properties • Optimal price-to-performance ratio for amateurs and craftsmen • Solid moulding fence with dust port of 100 mm • Ergonomically arranged switches and control elements allow for high work comfort • Solid, grey cast-iron table eliminates vibrations, constructed and polished with precision • Practically positioned handwheels allow for convenient saw unit adjustment • Roller table with aluminium fence ensures high user comfort • Emergency stop button on front of machine increases safety • Most suitable for accurate processing of panels, planks, boards etc. • Dynamically balanced moulder spindle ensures for vibration-free run Circular saw Table size 900 x 410 mm Table height - 860 mm Roller table 400 x 250 mm Cutting length 670 mm Max. sawblade diameter 200 x 30 mm Max. cutting height 90° / 45° 60 / 50 mm Cutting width on rip fence - 410 mm Speed main sawblade 4750 rpm Dust extraction outlet 100 mm Motor power output S1 100% - 1,1 kW (1,5 HP) Motor power input S6 40% - 1,5 kW (2,0 HP)
