Clean room tweezer 5-030

Overview

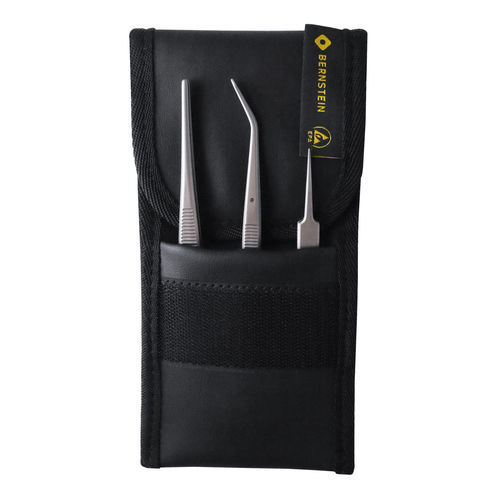

A 3-piece set of titanium tweezers supplied with an ESD-dissipative case, designed for high-precision soldering, medical and cleanroom environments. The tweezers combine low thermal conductivity, corrosion resistance and biocompatibility for residue-free work in demanding applications.

Contents

• 5-030-0: ESD dissipative bag, 3 empty pockets
• 5-031: TITAN tweezers, 110 mm, form 5
• 5-036: TITAN anatomical tweezers, 145 mm, form 40, serrated
• 5-037: TITAN anatomical tweezers, 150 mm, form 22b with guide pin, serrated

Technical description

Tweezers are manufactured entirely from titanium and finished with a matt polish to provide a smooth, non-glare surface. Titanium’s low heat conduction allows brief contact during soldering without significant heat transfer and causes solder to bead and roll off, enabling residue-free joints. The set is delivered in an ESD imitation-leather case suitable for electrostatic protected areas (EPA); the case is dissipative (10^6 Ohm), flame retardant and biocompatible. A dissipative Velcro strap minimizes static charge on opening.

Technical specifications

• Material: titanium — antimagnetic, acid-resistant, solder-repellent, antibacterial, corrosion-resistant, biocompatible
• Surface: matt polished, smooth and glare-free
• Soldering behaviour: soldering beads roll off; residue-free work
• Thermal behaviour: very low thermal conductivity (practically no heat dissipation during brief contact)
• Resistance: resistant to acidic fluxes used in soldering
• Dimensions (set / packaging): 160 x 85 x 20 mm
• Weight (set): 70 g
• Melting point (titanium): 1941 K (1668 °C)
• Thermal conductivity (titanium): 22 W
• Electrical conductivity (titanium): 2.5 x 10^6
• ESD case: dissipative 10^6 Ohm; EPA suitable (DIN EN 61340-5-1)
• Case features: ESD imitation leather, flame retardant, biocompatible, dissipative Velcro strap
