Scintillation detector TowerSENS

radiometricprocessrugged

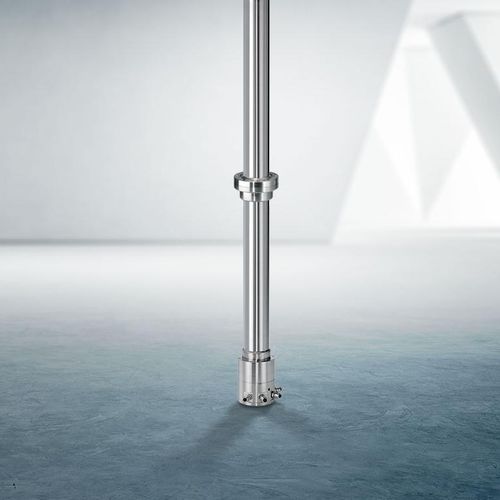

The rod detector for long measuring ranges With a maximum length of 8 m, the TowerSENS rod detector is specifically designed to monitor long measuring ranges. With only one electronic transmitter and therefore only one explosion proof housing, the TowerSENS is significantly more economical than systems comprising several short cascading detectors. Moreover, the wiring efforts and the risk of system failure is drastically reduced. Benefits at a glance • One detector for up to 8 m measuring ranges • Long-time stability of 0.02 % per °C (patented method) • Highly sensitive 50 mm diameter scintillation rod • Universally applicable • Stainless steel housing Characteristics TowerSENS uses a 50 mm diameter scintillation rod to ensure high sensitivity and accuracy over the entire measuring range. Therefore, the TowerSENS detector can work with 15-20 fold less source activity when compared to scintillation fiber technology. Due to the stainless steel housing and the robust scintillation rod, the TowerSENS can work in the most demanding of process conditions. Our patented method for detector stabilization reliably compensates for temperature influences and aging effects and ensures outstanding detector performance over many years
