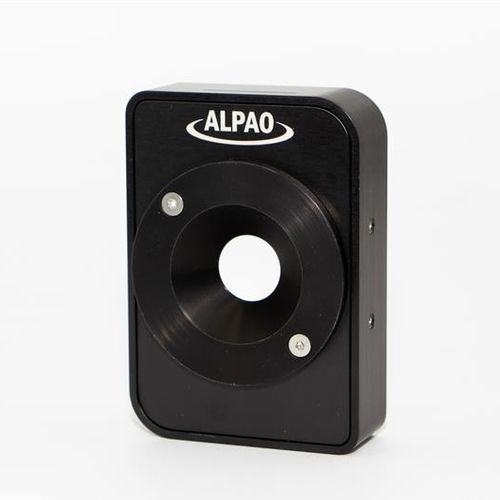

Deformable mirror DM

flat

Bertin Alpao Deformable Mirrors (DM) are based on a unique technology consisting of a continuous reflective surface driven by electromagnetic actuators. These mirrors dynamically adapt their shape in real time to correct optical aberrations and deliver high-resolution images. To match your needs and technical requirements, we offer a large range of Deformable Mirrors where each mirror can feature different actuators counts, pupil diameter, improved stability and strokes. Our products provide high dynamic motion and excellent optical quality, ensuring fast and accurate wavefront correction. Each Bertin Alpao DM comes with its standard connectivity, SDK library and drive electronics. However, to address power capacity constraints and space limitations you can opt for our new compact eDM with embedded electronics. KEY FEATURES LARGE RANGE OF PRODUCTS • From 90 mm to 190 mm pupil diameter HIGHLY DYNAMIC MOTION • Settling time as low as 400µs at +/10% OPTICAL QUALITY • Active best flat as low as 7nm RMS LARGE DEFORMATION • Up to 90 µm optical deformation (peak to valley): to correct large amplitude aberrations • Up to 5.0µm optical deformation (inter actuator): to correct high spatial-frequency aberrations
