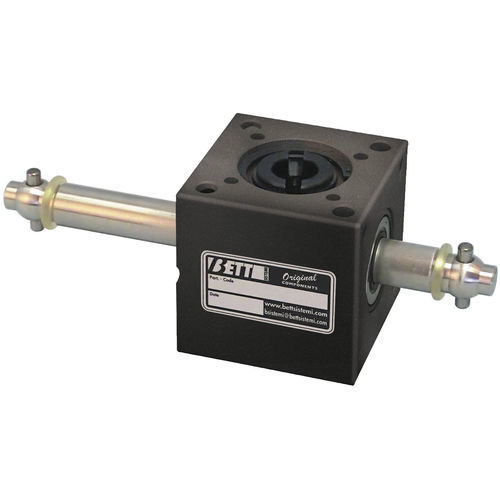

90° angle gearbox 4653

hollow-shaftstainless steel

Use: it allows idling and synchronising motion transmission – ideal to connect the format changeover bridges to each other. State of supply 1 aluminium idler body (see Finishes on the table), 1 stainless steel shaft, 2 phosphated steel gears (see Finishes on the table), 2 UNI6364 steel cylindrical pins, 3 bearings with sliding gaskets, 2 polyurethane O-rings, galvanised steel nuts and bolts. Reduction ratio i=1. Output angular clearance: ≈1° Characteristics: may be fitted with flanges on 4 sides. Operation: STEP-BY-STEP(NOcontinuous operation). Max. 120 rpm with max torque of 5 Nm. Max. 70 rpm with torque between 5.1 and 10 Nm. Max time: 1 min; on/off ratio=1/10 (max 10%). Maintenance: not required, lubricated for life.
