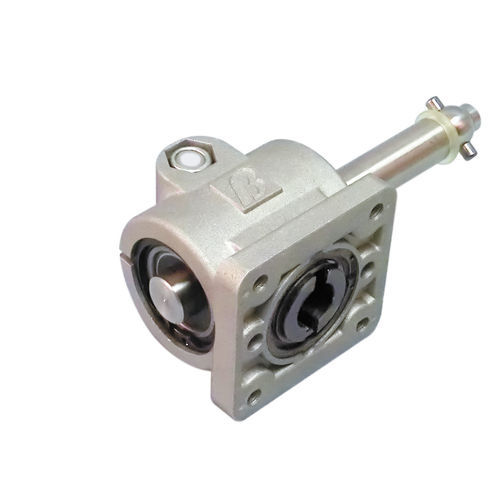

90° angle gearbox 4662stainless steel
Add to favorites
Compare this product
Characteristics
- Configuration
- 90°
- Material
- stainless steel
Description
Use: it allows idling and synchronising motion transmission – ideal to connect the format changeover bridges to each other.
Version with M6 holes on the bracket flange, which allow fastening the idler from the inside of the structure.
State of supply 1 aluminium idler body; 1 stainless steel shaft, 2 phosphated steel gears, 1 UNI6364 steel cylindrical pin, 3 bearings with sliding gaskets, 1 polyurethane O-ring, galvanised steel nuts and bolts.
Reduction ratio i=1.
Outfeed angular backlash: ≈1°
Operation: STEP-BY-STEP (NO continuous operation).
Max. 120 rpm with max torque of 5 Nm.
Max. 70 rpm with torque between 5.1 and 10 Nm.
Max time: 1 min; on/off ratio=1/10 (max 10%).
Maintenance: not required, lubricated for life.
Standard pack: 1 piece.
