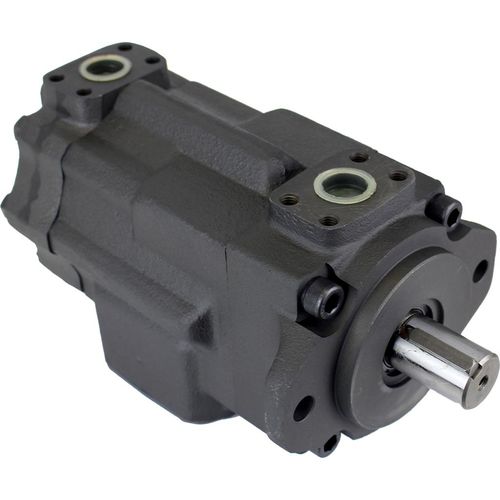

Double vane hydraulic pump DT6CC series
Add to favorites
Compare this product
Characteristics
- Type
- double vane
- Pressure
240 bar, 275 bar
(3,481 psi, 3,989 psi)- Flow rate
Max.: 31 us gal/min
(117.35 l/min)Min.: 3 us gal/min
(11.36 l/min)- Speed
Max.: 3,000 rpm
(18,850 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Weight
26 kg
(57.32 lb)- Power
Max.: 90 kW
(122.37 hp)Min.: 0 kW
(0 hp)
Description
Vane pumps are uni-directional units with a great versatility and a silent running.
Their cartridges are replaceable in a very easy way.
Output ports configuration can be customized.
