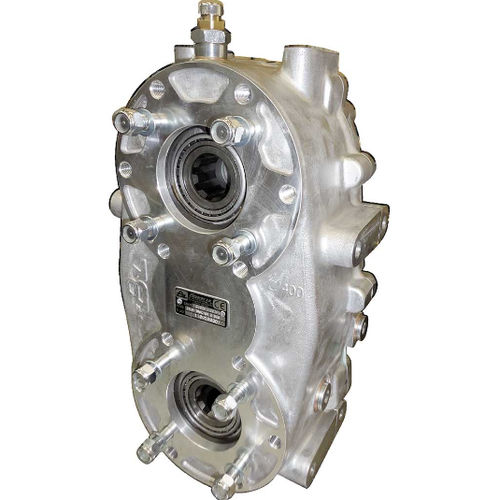

Helical gear reducer 820
parallel-shaftdual-shaft500 - 1000 Nm

helical gear reducer
helical gear reducer
helical gear reducer
helical gear reducer
Add to favorites
Compare this product


Characteristics

Type
helical
Shaft orientation
parallel-shaft
Shaft configuration
dual-shaft
Torque
500 - 1000 Nm
Rotational speed

1,000 rpm
(6,283.19 rad.min-1)

Power

Min.: 0 kW
(0 hp)

Max.: 86 kW
(116.93 hp)

Gear ratio

2 unit, 2.5 unit, 3.8 unit, 4.8 unit

Description

Speed up gearbox 1 input, 2 outputs. Different output types (SAE B, SAE BB, SAE C, ISO). With taper roller bearings. Independent ratios on each output, from 1:1 to 1:4,8.
