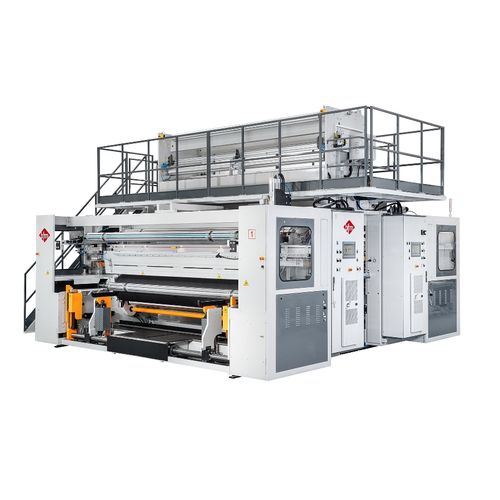

Film winder NW 477automatic
Add to favorites
Compare this product
Characteristics
- Product application
- film
- Other characteristics
- automatic
Description
Automatic Winder developed for the most demanding productions, with different possibilities of winding as : surface contact, axial/gap, mixed system, available in widths up to 5 m.
The NW477 is a compact winder equipped with excellent safety devices thanks to the application of the latest generation PLC safe.
The machine is completely automatic and can be supplied with various options on request such as the addition of cutting systems for the production of multi-reel or of a pre-acceleration mandrel system during reel change.
TECHNICAL DETAILS
Machine width (min/max ): 800-5000 mm
Useful film width (min/max): 300-4800 mm
Max reel diameter: 1200 mm
Shafts size: 3 "- 4" - 5 "- 6" (Inch)
Maximal speed: 200 mt/min
Thikness range material: 10-250(µ)
Catalogs
AUTOMATIC WINDERS
4 Pages
