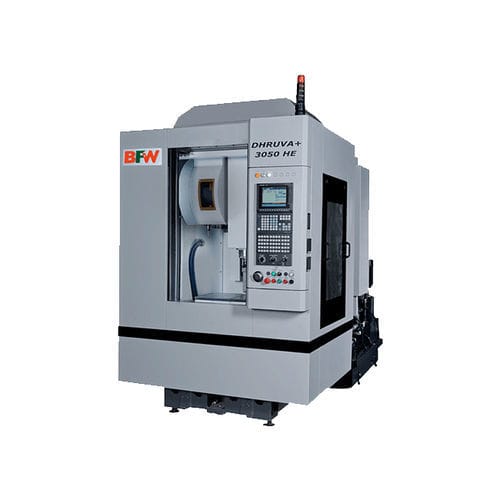

3-axis CNC machining center DHRUVA HE series

verticalmillingdrilling

“Dhruva HE perfectly aligns with your requirements, offering the right combination of precision with quality, productivity, performance with reliability, and flexibility. Dhruva machines are flexible to suit diverse customer requirements.” Brand Story Dhruva HE perfectly aligns with your requirements, offering the right combination of precision, productivity, reliability, flexibility & compactness. Standard Features LM guide ways for all axes Ball – screws for all axes Centralized oil lubrication system Absolute encoder feedback for all axes Air blast for spindle taper cleaning Electronic counter-balance for vertical axis Tool clamping through disc-springs and lever Coolant tank Feedback through the absolute encoder Spindle taper air blow Rigid tapping Full machine guard Leveling pads Maintenance tool kit 8000 rpm spindle speed 3-tier lamp Coolant gun Telescopic covers for X, Y Axis and Single Sheet Cover for Z Axis. Fanuc 0iMF+ Unique Features Drilling & Milling Made Easy High speed positioning Faster spindle orientation Faster fixed cycle Various table options: Fixed table, Rotary table, Tilting rotary table Optional Features Increased day light area Provision for 4th and 5th axes Chip conveyor and drum filtration High pressure coolant through spindle (16 bar/40 bar) with suitable filtration Oil skimmer Automatic front door Tool breakage sensor Interfacing for robot loading Voltage stabilizer Air gun AC for electrical cabinet Collision detection sensor iToolCaptain, BFW’s High Precision Tool Monitoring System Spindle speeds up to 24,000rpm
